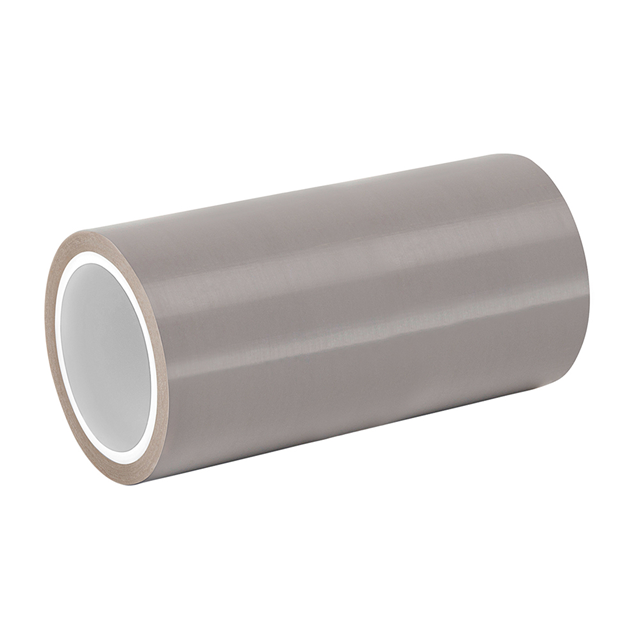

6-1-2045-3

Active

TapeCase

2045-3 GRAY SUPER SLICK TAPE MAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6-1-2045-3

Active

TapeCase

2045-3 GRAY SUPER SLICK TAPE MAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6-1-2045-3

Adhesive	Silicone
Backing, Carrier	PTFE Film
Color	Gray
Tape Type	Film
Temperature Range [Max]	260 °C
Temperature Range [Min]	-73 °C, -100 °F
Thickness	3 mils
Thickness	0.003 in
Thickness	0.076 mm
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Usage	General Purpose

2045 Series

...

Part	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Adhesive	Usage	Tape Type	Temperature Range [Min]	Temperature Range [Max]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]
TapeCase 0.375-1-2045-3 (PK15)	Gray	0.003 in	3 mils	0.076 mm	PTFE Film	Silicone	General Purpose	Film	-100 °F -73 °C	260 °C	1.5 mils	0.0015 in	0.038 mm	3 mils	0.003 in	0.076 mm
TapeCase 6-36-2045-3	Gray	0.003 in	3 mils	0.076 mm	PTFE Film	Silicone	General Purpose	Film	-100 °F -73 °C	260 °C	1.5 mils	0.0015 in	0.038 mm	3 mils	0.003 in	0.076 mm
TapeCase 12-36-2045-5	Gray				PTFE Film	Silicone	General Purpose	Film			1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	0.005 "	5 mils	0.127 mm
TapeCase 9-1-2045-10	Gray	0.01 "	10 mils	0.254 mm	PTFE Film	Silicone	General Purpose	Film			1.5 mils	0.0015 in	0.038 mm	10 mils	0.01 "	0.254 mm
TapeCase 4-1-2045-5	Gray				PTFE Film	Silicone	General Purpose	Film			1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	0.005 "	5 mils	0.127 mm
TapeCase 10-1-2045-10	Gray	0.01 "	10 mils	0.254 mm	PTFE Film	Silicone	General Purpose	Film			1.5 mils	0.0015 in	0.038 mm	10 mils	0.01 "	0.254 mm
TapeCase 0.25-5-2045-5 (PK5)	Gray				PTFE Film	Silicone	General Purpose	Film			1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	0.005 "	5 mils	0.127 mm
TapeCase 1.625-18-2045-10	Gray	0.01 "	10 mils	0.254 mm	PTFE Film	Silicone	General Purpose	Film			1.5 mils	0.0015 in	0.038 mm	10 mils	0.01 "	0.254 mm
TapeCase 0.875-18-2045-10	Gray	0.01 "	10 mils	0.254 mm	PTFE Film	Silicone	General Purpose	Film			1.5 mils	0.0015 in	0.038 mm	10 mils	0.01 "	0.254 mm
TapeCase 6-1-2045-3	Gray	0.003 in	3 mils	0.076 mm	PTFE Film	Silicone	General Purpose	Film	-100 °F -73 °C	260 °C	1.5 mils	0.0015 in	0.038 mm	3 mils	0.003 in	0.076 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6	$ 44.80

Description

General part information

2045 Series

Film Tape Silicone Adhesive Gray X
