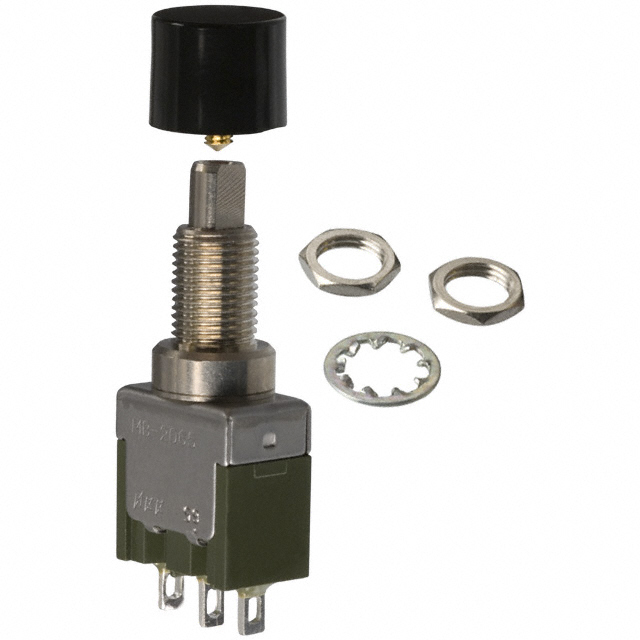

MB2065SS1W01-CA
ObsoleteNKK Switches
SWITCH PUSHBUTTON SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB2065SS1W01-CA
ObsoleteNKK Switches
SWITCH PUSHBUTTON SPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB2065SS1W01-CA |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
MB2065S Series
| Part | Panel Cutout Dimensions [diameter] | Circuit | Actuator Type | Type | Actuator Marking | Voltage Rating - DC | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Voltage Rating - AC | Mechanical Life | Electrical Life | Switch Function | Current Rating (Amps) | Color - Actuator/Cap | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 12.5 mm | SPDT | Plunger for Cap | Standard | No Marking | 30 V | Panel Mount Rear | Epoxy Sealed Terminals | -30 ░C | 85 °C | Solder Lug | 125 V | 100000 Cycles | 25000 Steps | On-On | 3 A 6 A | ||
NKK Switches | 6.5 mm | SPDT | Button Round | Standard | No Marking | 30 V | Through Hole | Epoxy Sealed Terminals | -30 ░C | 85 °C | PC Pin | 125 V | 100000 Cycles | 25000 Steps | On-On | 3 A 6 A | Blue | |
NKK Switches | 6.5 mm | SPDT | Button Round | Standard | No Marking | 30 V | Panel Mount Rear | Epoxy Sealed Terminals | -30 ░C | 85 °C | Solder Lug | 125 V | 25000 Steps | On-On | 3 A 6 A | Red | IP67 - Dust Tight Waterproof | |
NKK Switches | SPDT | Button Round | Standard | No Marking | 28 V | Through Hole Right Angle | Epoxy Sealed Terminals | -30 ░C | 85 °C | PC Pin | 28 V | 100000 Cycles | 50000 Cycles | On-On | 0.4 VA | |||
NKK Switches | 6.5 mm | SPDT | Button Round | Standard | No Marking | 30 V | Panel Mount Rear | Epoxy Sealed Terminals | -30 ░C | 85 °C | Solder Lug | 125 V | 100000 Cycles | 25000 Steps | On-On | 3 A 6 A | Black | |
NKK Switches | 6.5 mm | SPDT | Plunger for Cap | Standard | No Marking | 28 V | Panel Mount Rear | Epoxy Sealed Terminals | -30 ░C | 85 °C | Solder Lug | 28 V | 100000 Cycles | 50000 Cycles | On-On | 0.4 VA | ||
NKK Switches | 6.5 mm | SPDT | Button Round | Standard | No Marking | 30 V | Panel Mount Rear | Epoxy Sealed Terminals | -30 ░C | 85 °C | Solder Lug | 125 V | 100000 Cycles | 25000 Steps | On-On | 3 A 6 A | Blue | |
NKK Switches | 12.5 mm | SPDT | Button Round | Standard | No Marking | 30 V | Panel Mount Rear | Epoxy Sealed Terminals | -30 ░C | 85 °C | Solder Lug | 125 V | 100000 Cycles | 25000 Steps | On-On | 3 A 6 A | Blue | |
NKK Switches | 6.5 mm | SPDT | Button Round | Standard | No Marking | 30 V | Panel Mount Rear | Epoxy Sealed Terminals | -30 ░C | 85 °C | Solder Lug | 125 V | 100000 Cycles | 25000 Steps | On-On | 3 A 6 A | Blue | |
NKK Switches | SPDT | Button Round | Standard | No Marking | 28 V | Through Hole Right Angle | Epoxy Sealed Terminals | -30 ░C | 85 °C | PC Pin | 28 V | 100000 Cycles | 50000 Cycles | On-On | 0.4 VA | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MB2065S Series
Pushbutton Switch SPDT Standard Panel Mount, Rear
