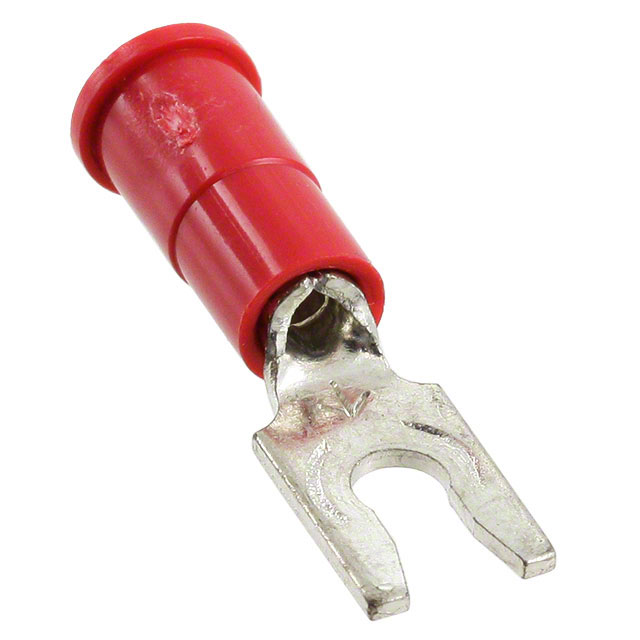

MV18-4FLX-BOTTLE

Active

3M (TC)

CONN SPADE TERM 18-22AWG 4 100PC

Deep-Dive with AI

Search across all available documentation for this part.

MV18-4FLX-BOTTLE

Active

3M (TC)

CONN SPADE TERM 18-22AWG 4 100PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MV18-4FLX-BOTTLE

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Brazed Seam
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	0.88 in
Length - Overall [x]	22.35 mm
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	4 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Width - Outer Edges [y]	0.25 "
Width - Outer Edges [y]	6.35 mm
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

MV18 Series

Part	Features	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Terminal Type	Termination	Insulation Diameter	Insulation Diameter [diameter]	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges	Width - Outer Edges	Mounting Type	Stud/Tab Size	Length - Ring Center to Termination	Length - Ring Center to Termination	Contact Finish	Insulation	Contact Material	Color	Length - Overall	Length - Overall	Length - Overall [x]	Thickness	Thickness	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
3M (TC) MV18-6FK	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Standard	Crimp	3.68 mm	0.145 "	0.45 in	11.43 mm	8.64 mm	0.34 in	Free Hanging (In-Line)	6 Stud	0.29 in	7.37 mm	Tin	Insulated	Copper ETP	Red	0.9 in	22.86 mm
3M (TC) MV18-8R/LK	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Circular	Crimp	3.68 mm	0.145 "			7.87 mm		Free Hanging (In-Line)				Tin	Insulated	Copper ETP	Red		23.62 mm	0.93 in	0.03 in	0.76 mm	8 Stud	0.31 in
3M (TC) MV18-38RX-BOTTLE	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Circular	Crimp	3.68 mm	0.145 "					Free Hanging (In-Line)				Tin	Insulated	Copper ETP	Red		28.7 mm	1.13 in	0.03 in	0.76 mm	3/8 Stud	0.56 in	14.22 mm
3M (TC) MV18-4FLX-BOTTLE	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Snap Spring	Crimp	3.68 mm	0.145 "	0.45 in	11.43 mm			Free Hanging (In-Line)	4 Stud			Tin	Insulated	Copper ETP	Red			0.88 in				0.25 "	6.35 mm	22.35 mm	0.25 in	6.35 mm
3M (TC) MV18-6R/SX-BOTTLE	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Circular	Crimp	3.68 mm	0.145 "					Free Hanging (In-Line)	6 Stud				Insulated		Red			0.8 in	0.03 in	0.76 mm		0.25 "	6.35 mm	20.32 mm
3M (TC) MV18-8FK	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Standard	Crimp	3.68 mm	0.145 "	0.45 in	11.43 mm	8.64 mm	0.34 in	Free Hanging (In-Line)		0.29 in	7.37 mm	Tin	Insulated	Copper ETP	Red	0.9 in	22.86 mm				8 Stud
3M (TC) MV18-4R/SX-BOTTLE	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Circular	Crimp	3.68 mm	0.145 "					Free Hanging (In-Line)	4 Stud			Tin	Insulated	Copper ETP	Red			0.8 in	0.03 in	0.76 mm		0.25 "	6.35 mm	20.32 mm
3M (TC) MV18-10R/LX-BOTTLE	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Circular	Crimp	3.68 mm	0.145 "			7.87 mm		Free Hanging (In-Line)	10 Stud			Tin	Insulated	Copper ETP	Red		23.62 mm	0.93 in	0.03 in	0.76 mm		0.31 in
3M (TC) MV18-14R/SK	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Circular	Crimp	3.68 mm	0.145 "					Free Hanging (In-Line)	0.25 Stud			Tin	Insulated	Copper ETP	Red				0.03 in	0.76 mm		0.47 in	11.94 mm
3M (TC) MV18-10R/LK	Brazed Seam	22 AWG	17.5 AWG	Vinyl	Circular	Crimp	3.68 mm	0.145 "			7.87 mm		Free Hanging (In-Line)	10 Stud			Tin	Insulated	Copper ETP	Red		23.62 mm	0.93 in	0.03 in	0.76 mm		0.31 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 90.09

Description

General part information

MV18 Series

Red 4 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources

No documents available
