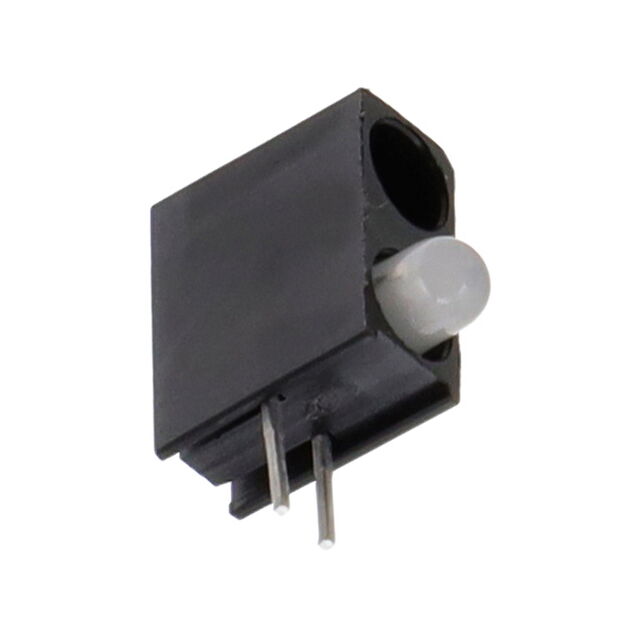

5530701F

Active

DIALIGHT

LED CBI BI-LVL GRN/RED/BLANK RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5530701F

Active

DIALIGHT

LED CBI BI-LVL GRN/RED/BLANK RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530701F

Color	Green, Blank (x 1), Red (x 1)
Configuration	2 High
Current [custom]	30 mA
Current [custom]	30 mA
Millicandela Rating [custom]	10 mcd
Millicandela Rating [custom]	4.7 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2.1 V, 2 V
Wavelength - Peak	565 nm, 635 nm

5530701 Series

Part	Mounting Type	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Current [custom]	Current [custom]	Voltage Rating	Wavelength - Peak	Viewing Angle	Color	Lens Style	Lens Size	Lens Size
DIALIGHT 5530701F	Through Hole Right Angle	2 High	10 mcd	4.7 mcd	30 mA	30 mA	2 V 2.1 V	565 nm 635 nm	60 °	Blank (x 1) Green Red (x 1)
DIALIGHT 5530701300F	Through Hole Right Angle	2 High	10 mcd	4.7 mcd			2 V 2.1 V	565 nm 635 nm		Blank (x 1) Green Red (x 1)	Round with Domed Top	3 mm	T-1
DIALIGHT 5530701200F	Through Hole Right Angle	2 High	10 mcd	4.7 mcd				565 nm 635 nm	60 °	Green Red	Round with Domed Top	3 mm	T-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.66
		10	$ 1.75
		100	$ 1.28
		500	$ 1.10
		1000	$ 1.04
		2000	$ 0.99
		5000	$ 0.95
		10000	$ 0.92

Description

General part information

5530701 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Red (x 1), Blank (x 1) 2.1V Green, 2V Red 30mA Green, 30mA Red Through Hole, Right Angle
