LFWLT450-1001

Active

EOS Power India Private Ltd

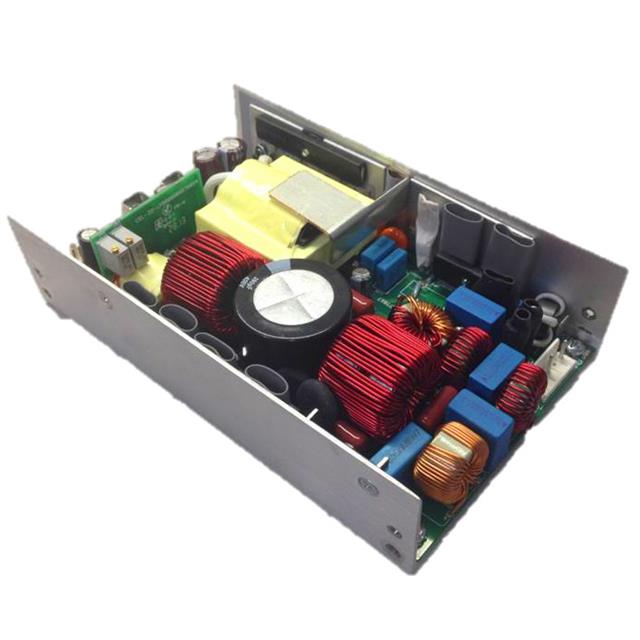

AC/DC CONVERTER 12V 250W

Deep-Dive with AI

Search across all available documentation for this part.

LFWLT450-1001

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 250W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFWLT450-1001

Applications	ITE (Commercial)
Approval Agency	cUL, NEMKO, UL, CE
Current - Output 1	20.83 A
Efficiency	86 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	250 W, 450 W
Size / Dimension [x]	6.5 in
Size / Dimension [x]	165.1 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Type	Open Frame
Voltage - Input [Max]	390 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	4.242 kV
Voltage - Output 1	12 V

WLT450 Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Type	Features	Power (Watts)	Voltage - Output 1	Number of Outputs	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Current - Output 1	Applications	Mounting Type	Voltage - Isolation	Approval Agency	Power (Watts)
EOS Power India Private Ltd LFWLT450-1005	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	Open Frame	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	300 W 450 W	30 V	1	90 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	10 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL
EOS Power India Private Ltd LFWLT450-1001	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	Open Frame	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	250 W 450 W	12 V	1	86 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	20.83 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL
EOS Power India Private Ltd LFWLT450-1005-I-T	101.6 mm	4 "	2.62 in	7.87 in	200 mm	66.4 mm	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	300 W 450 W	30 V	1	90 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	10 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL
EOS Power India Private Ltd LFWLT450-1004-S	101.6 mm				7.87 " 200 mm	1.66 in 42.2 mm	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	300 W 450 W	48 V	1	90 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	6.25 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL
EOS Power India Private Ltd LFWLT450-1004-I	101.6 mm				7.87 " 200 mm	1.66 in 42.2 mm	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	300 W 450 W	48 V	1	90 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	6.25 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL
EOS Power India Private Ltd LFWLT450-1003-I-S	101.6 mm				7.87 " 200 mm	1.66 in 42.2 mm	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	295 W	24 V	1	90 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	12.3 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL	450 W
EOS Power India Private Ltd LFWLT450-1005-I	101.6 mm				7.87 " 200 mm	1.66 in 42.2 mm	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	300 W 450 W	30 V	1	90 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	10 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL
EOS Power India Private Ltd LFWLT450-1002-I-S	101.6 mm				7.87 " 200 mm	1.66 in 42.2 mm	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	250 W 450 W	15 V	1		90 VAC 120 VDC	264 VAC 390 VDC	70 °C	16.66 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL
EOS Power India Private Ltd LFWLT450-1004-I-T	101.6 mm	4 "	2.62 in	7.87 in	200 mm	66.4 mm	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	300 W 450 W	48 V	1	90 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	6.25 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL
EOS Power India Private Ltd LFWLT450-1000-I-S	101.6 mm				7.87 " 200 mm	1.66 in 42.2 mm	Enclosed	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	155 W 275 W	5 V	1	83 %	90 VAC 120 VDC	264 VAC 390 VDC	70 °C	31 A	ITE (Commercial)	Chassis Mount	4.242 kV	CE cUL NEMKO UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 225.79
		5	$ 218.73
		10	$ 211.68

Description

General part information

WLT450 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC, 120 ~ 390 VDC Input

Documents

Technical documentation and resources

No documents available
