ELG-200-54

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 54V 3.72A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

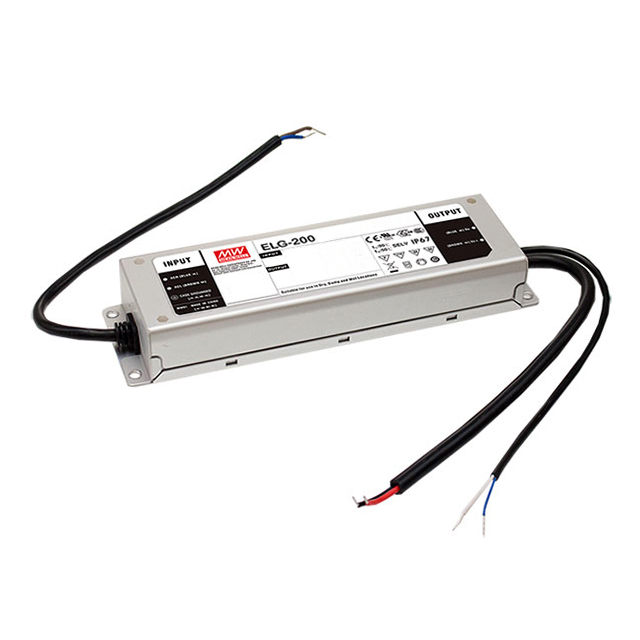

ELG-200-54

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 54V 3.72A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELG-200-54

Approval Agency	cURus, CE, ENEC, CB, CCC
Current - Output (Max) [Max]	3.72 A
Efficiency	93 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	201 W
Ratings	IP67
Size / Dimension [x]	200 mm
Size / Dimension [x]	7.87 in
Size / Dimension [y]	2.8 in
Size / Dimension [y]	71 mm
Size / Dimension [z]	1.48 "
Size / Dimension [z]	37.5 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	100 VAC
Voltage - Isolation	3750 V
Voltage - Output	54 V

ELG-200 Series

Part	Voltage - Input (Max) [Max]	Mounting Type	Features	Current - Output (Max) [Max]	Type	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Isolation	Termination Style	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Power (Watts)	Approval Agency	Voltage - Output	Dimming
MEAN WELL USA Inc. ELG-200-C1050A-3Y	305 VAC	Chassis Mount	OTP OVP SCP	1.05 A	Constant Current	IP65	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	95 V	190 V	3750 V	Wire Leads	AC DC Converter	85 °C	-40 °C	1	93 %	100 VAC	200 W	CB CCC CE cURus EAC ENEC KC RCM
MEAN WELL USA Inc. ELG-200-C1750A-3Y	305 VAC	Chassis Mount	OTP OVP SCP	1.75 A	Constant Current	IP65	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	57 V	114 V	3750 V	Wire Leads	AC DC Converter	85 °C	-40 °C	1	92 %	100 VAC	200 W	CB CCC CE cURus EAC ENEC KC RCM
MEAN WELL USA Inc. ELG-200-48DA	305 VAC	Chassis Mount	OCP OTP OVP SCP	4.16 A	Constant Current Voltage	IP67	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm			3750 V	Wire Leads	AC DC Converter	90 °C	-40 °C	1	93 %	100 VAC	200 W	CB CCC CE cURus EAC ENEC KC RCM	48 V
MEAN WELL USA Inc. ELG-200-54	305 VAC	Chassis Mount	OCP OTP OVP SCP	3.72 A	Constant Current Voltage	IP67	7.87 in	200 mm	1.48 "	2.8 in	71 mm	37.5 mm			3750 V	Wire Leads	AC DC Converter	90 °C	-40 °C	1	93 %	100 VAC	201 W	CB CCC CE cURus ENEC	54 V
MEAN WELL USA Inc. ELG-200-C700	305 VAC	Chassis Mount	OTP OVP SCP	700 mA	Constant Current	IP67	7.87 in	200 mm	1.48 "	2.8 in	71 mm	37.5 mm	142 V	286 V	3750 V	Wire Leads	AC DC Converter	85 °C	-40 °C	1	93 %	100 VAC	200 W	CB CCC CE cURus ENEC
MEAN WELL USA Inc. ELG-200-C1050B	305 VAC	Chassis Mount	OTP OVP SCP	1.05 A	Constant Current	IP67	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	95 V	190 V	3750 V	Wire Leads	AC DC Converter	85 °C	-40 °C	1	93 %	100 VAC	200 W	CB CCC CE cURus EAC ENEC RCM		Analog PWM
MEAN WELL USA Inc. ELG-200-C1400A-3Y	305 VAC	Chassis Mount	OTP OVP SCP	1.4 A	Constant Current	IP65	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	71 V	142 V	3750 V	Wire Leads	AC DC Converter	85 °C	-40 °C	1	92 %	100 VAC	199 W	CB CCC CE cURus EAC ENEC KC RCM
MEAN WELL USA Inc. ELG-200-24	305 VAC	Chassis Mount	OCP OTP OVP SCP	8.4 A	Constant Current Voltage	IP67	7.87 in	200 mm	1.48 "	2.8 in	71 mm	37.5 mm			3750 V	Wire Leads	AC DC Converter	90 °C	-40 °C	1	92 %	100 VAC	202 W	CB CCC CE cURus ENEC	24 V
MEAN WELL USA Inc. ELG-200-12D2	305 VAC	Chassis Mount	OCP OTP OVP SCP	16 A	Constant Current Voltage	IP67	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm			3750 V	Wire Leads	AC DC Converter	90 °C	-40 °C	1	90 %	100 VAC	192 W	CB CCC CE cURus EAC ENEC RCM	12 V
MEAN WELL USA Inc. ELG-200-C2100A	305 VAC	Chassis Mount	OTP OVP SCP	2.1 A	Constant Current	IP65	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	48 V	96 V	3750 V	Wire Leads	AC DC Converter	85 °C	-40 °C	1	92 %	100 VAC	202 W	CB CCC CE cURus EAC ENEC KC RCM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.60
		5	$ 53.55
		10	$ 51.50
		25	$ 48.92

Description

General part information

ELG-200 Series

3.72A 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
