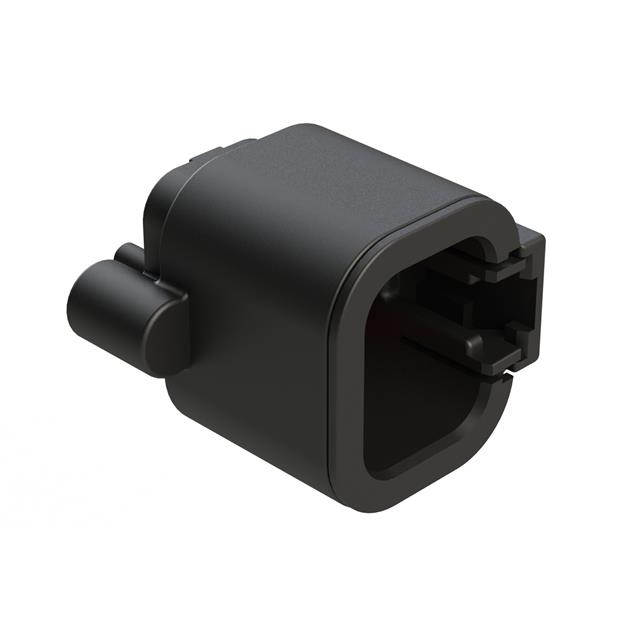

ATP04-4P-BM11

Active

Amphenol Sine Systems Corp

4 POSITION, STRAIGHT PCB RECEPTA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATP04-4P-BM11

Active

Amphenol Sine Systems Corp

4 POSITION, STRAIGHT PCB RECEPTA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP04-4P-BM11

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	25 A
Fastening Type	Latch Holder
Features	Board Guide, Sealed
Ingress Protection	IP68, IP69K
Insulation Color	Black
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	6.71 mm
Pitch - Mating	0.264 in
Row Spacing - Mating	10.16 mm
Row Spacing - Mating	0.4 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

ATP04-4P Series

Part	Ingress Protection	Number of Positions	Insulation Material	Style	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Fastening Type	Contact Shape	Contact Length - Post	Contact Length - Post	Termination	Insulation Color	Contact Material	Mounting Type	Contact Type	Shrouding	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Current Rating (Amps)	Contact Finish - Mating	Number of Positions Loaded	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Termination	Note	Color
Amphenol Sine Systems Corp ATP04-4P-BM02	IP68 IP69K	4	Thermoplastic	Board to Cable/Wire	10.16 mm	0.4 in	2	Latch Holder	Circular	0.146 in	3.7 mm	Solder	Black	Copper Alloy	Through Hole	Male Pin	Shrouded - 4 Wall	6.71 mm	0.264 in	Gold	25 A	Gold	All	Receptacle	-55 °C	125 °C	Board Guide Board Lock Potting Wall Sealed
Amphenol Sine Systems Corp ATP04-4P-BM11	IP68 IP69K	4	Thermoplastic	Board to Cable/Wire	10.16 mm	0.4 in	2	Latch Holder	Circular	0.146 in	3.7 mm	Solder	Black	Copper Alloy	Through Hole	Male Pin	Shrouded - 4 Wall	6.71 mm	0.264 in	Gold	25 A	Gold	All	Receptacle	-55 °C	125 °C	Board Guide Sealed
Amphenol Sine Systems Corp ATP04-4P-BM13	IP68 IP69K	4	Thermoplastic	Board to Cable/Wire	10.16 mm	0.4 in	2	Latch Holder	Circular	0.146 in	3.7 mm	Solder	Black	Copper Alloy	Through Hole	Male Pin	Shrouded - 4 Wall	6.71 mm	0.264 in	Tin	25 A		All	Receptacle	-55 °C	125 °C	Board Guide Sealed
Amphenol Sine Systems Corp ATP04-4P-RD01		4	Thermoplastic				2	Latch Holder							Free Hanging (In-Line)	Male Pin								Receptacle	-55 °C	125 °C	Sealed	Crimp	Contacts Not Included	Gray
Amphenol Sine Systems Corp ATP04-4P-SR02BK		4	Thermoplastic				2	Latch Holder							Free Hanging (In-Line)	Male Pin								Receptacle	-55 °C	125 °C	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Crimp		Black
Amphenol Sine Systems Corp ATP04-4P-MM01BLK		4	Thermoplastic				2	Latch Holder							Free Hanging (In-Line)	Male Pin								Receptacle	-55 °C	125 °C	Cap (Cover) IP68 IP69K Reduced Wire Seals	Crimp		Black
Amphenol Sine Systems Corp ATP04-4P-MM01		4	Thermoplastic				2	Latch Holder							Free Hanging (In-Line)	Male Pin								Receptacle	-55 °C	125 °C	Cap (Cover) IP68 IP69K Reduced Wire Seals	Crimp		Gray
Amphenol Sine Systems Corp ATP04-4P-BM03	IP68 IP69K	4	Thermoplastic	Board to Cable/Wire	10.16 mm	0.4 in	2	Latch Holder	Circular	0.146 in	3.7 mm	Solder	Black	Copper Alloy	Through Hole	Male Pin	Shrouded - 4 Wall	6.71 mm	0.264 in	Tin	25 A		All	Receptacle	-55 °C	125 °C	Board Guide Board Lock Sealed
Amphenol Sine Systems Corp ATP04-4P-EC01		4	Thermoplastic				2	Latch Holder							Free Hanging (In-Line)	Male Pin								Receptacle	-55 °C	125 °C		Crimp	Contacts Not Included	Gray
Amphenol Sine Systems Corp ATP04-4P-PM07G		4	Thermoplastic				2	Latch Holder								Male Pin								Receptacle	-55 °C	125 °C	Sealed	Crimp	Contacts Not Included	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.66
		10	$ 6.89
		25	$ 6.49
		50	$ 6.33
		225	$ 6.16
		450	$ 5.86

Description

General part information

ATP04-4P Series

Connector Header Through Hole 4 position 0.264" (6.71mm)
