5441207

Active

Phoenix Contact

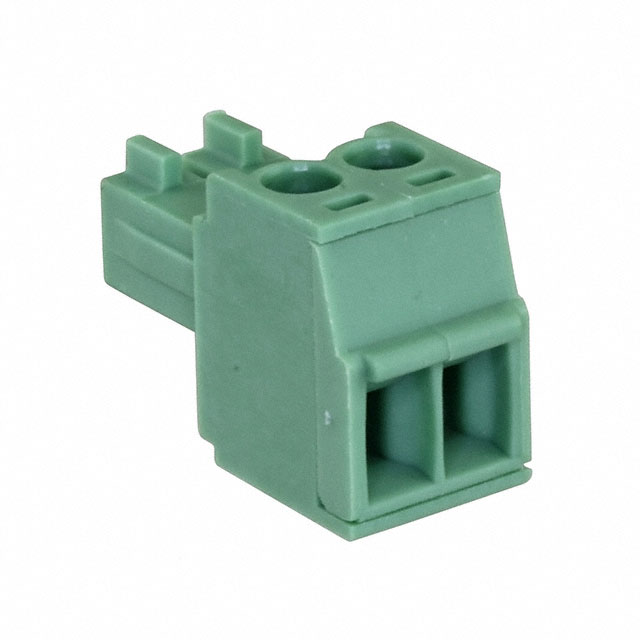

PLUGGABLE TERMINAL BLOCKS BCP-350- 2 GN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

5441207

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS BCP-350- 2 GN

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5441207

Color	Green
Contact Mating Finish	Tin
Current - IEC	8 A
Current - UL	8 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.437 in
Insulation Height	11.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	2
Screw Size	M2
Termination Style	Screw
Torque - Screw [Max]	2.2 Lb-In
Torque - Screw [Max]	0.25 Nm
Torque - Screw [Min]	0.22 Nm
Torque - Screw [Min]	1.9 Lb-In
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	7 mm

BCP Series

Pluggable Terminal Blocks BCP-350- 2 GN

Part	Color	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Contact Mating Finish	Pitch [x]	Pitch [x]	Voltage - IEC	Voltage - UL	Insulation Height	Insulation Height	Number of Positions	Number of Levels	Current - IEC	Type	Termination Style	Mounting Type	Current - UL	Screw Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material Flammability Rating	Wire Strip Length	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Material	Positions Per Level	Features
Phoenix Contact 5441207	Green	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Tin	3.5 mm	0.138 in	320 V	300 V	0.437 in	11.1 mm	2	1	8 A	Plug Female Sockets	Screw	Free Hanging (In-Line)	8 A	M2	0.2 mm²	1.5 mm²	UL94 V-0	7 mm	14 AWG	30 AWG	Polyamide (PA) Nylon	2
Phoenix Contact 5441731	Black	4.4 Lb-In	0.5 Nm	0.4 Nm	3.5 Lb-In	Tin	5 mm	0.197 in	630 V	300 V	0.591 in	15 mm		1	12 A	Plug Female Sockets	Screw	Free Hanging (In-Line)		M3	0.2 mm²	2.5 mm²	UL94 V-0	7 mm	12 AWG	30 AWG	Polyamide (PA) Nylon	3
Phoenix Contact 5452531	Black	2.2 Lb-In	0.25 Nm	0.2 Nm	1.7 Lb-In	Tin	3.81 mm	0.15 in	160 V	300 V	0.437 in	11.1 mm		1	8 A	Plug Female Sockets	Screw	Free Hanging (In-Line)	8 A	M2				7 mm	14 AWG	30 AWG		3	Mating Flange
Phoenix Contact 5448637	Green	4.4 Lb-In	0.5 Nm	0.4 Nm	3.5 Lb-In	Tin	5.08 mm	0.2 in	630 V	300 V	0.591 in	15 mm	4	1	12 A	Plug Female Sockets	Screw	Free Hanging (In-Line)			0.2 mm²	2.5 mm²	UL94 V-0	7 mm	12 AWG	30 AWG	Polyamide (PA) Nylon	4
Phoenix Contact 5452194	Black	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Tin	3.5 mm	0.138 in	320 V	300 V	0.437 in	11.1 mm	20	1	8 A	Plug Female Sockets	Screw	Free Hanging (In-Line)	8 A	M2	0.2 mm²	1.5 mm²	UL94 V-0	7 mm	14 AWG	30 AWG	Polyamide (PA) Nylon	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.97
Sager	N/A	100	$ 1.66
		500	$ 1.51

Description

General part information

BCP Series

Pluggable Terminal Blocks BCP-350- 2 GN

Documents

Technical documentation and resources

Datasheet

Document
