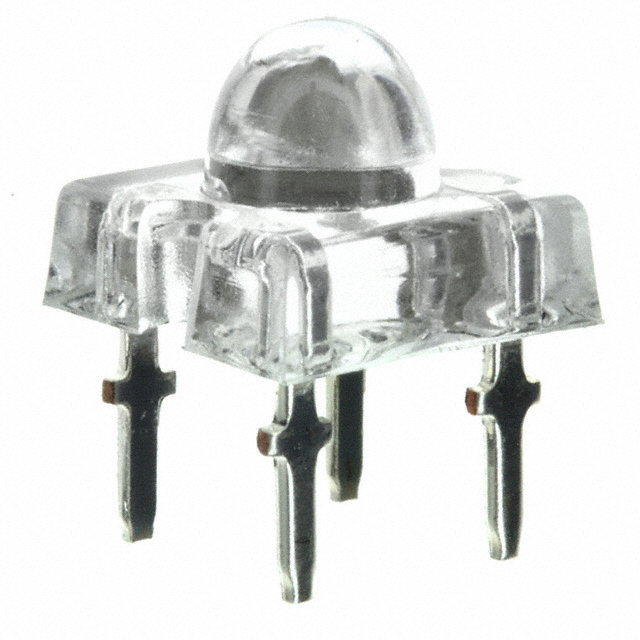

R50YLW-4-0045
ObsoleteBivar Inc.
LED YELLOW CLEAR T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R50YLW-4-0045
ObsoleteBivar Inc.
LED YELLOW CLEAR T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R50YLW-4-0045 |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) [Max] | 7.8 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 4.6 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 6000 mcd |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP |
| Package / Case | 0.2 in |
| Package / Case | 0.2 in |
| Size / Dimension [x] | 7.6 mm |
| Size / Dimension [y] | 7.6 mm |
| Viewing Angle | 45 ° |
| Voltage - Forward (Vf) (Typ) | 2.4 V |
| Wavelength - Dominant | 591 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
R50YLW-4-0045 Series
Yellow 591nm LED Indication - Discrete 2.4V 4-DIP (0.200", 5.08mm)
Documents
Technical documentation and resources
