2EDL8034G4CXTMA1
ActiveTHE 2EDL8034G4C IS DESIGNED TO DRIVE BOTH HIGH-SIDE AND LOW-SIDE MOSFETS IN A HALF-BRIDGE CONFIGURATION.
Deep-Dive with AI
Search across all available documentation for this part.
2EDL8034G4CXTMA1
ActiveTHE 2EDL8034G4C IS DESIGNED TO DRIVE BOTH HIGH-SIDE AND LOW-SIDE MOSFETS IN A HALF-BRIDGE CONFIGURATION.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2EDL8034G4CXTMA1 |
|---|---|
| Channel Type | Independent |
| Current - Peak Output (Source, Sink) [custom] | 6 A |
| Current - Peak Output (Source, Sink) [custom] | 4 A |
| Driven Configuration | Half-Bridge |
| Gate Type | P-Channel, N-Channel |
| High Side Voltage - Max (Bootstrap) [Max] | 120 V |
| Input Type | Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

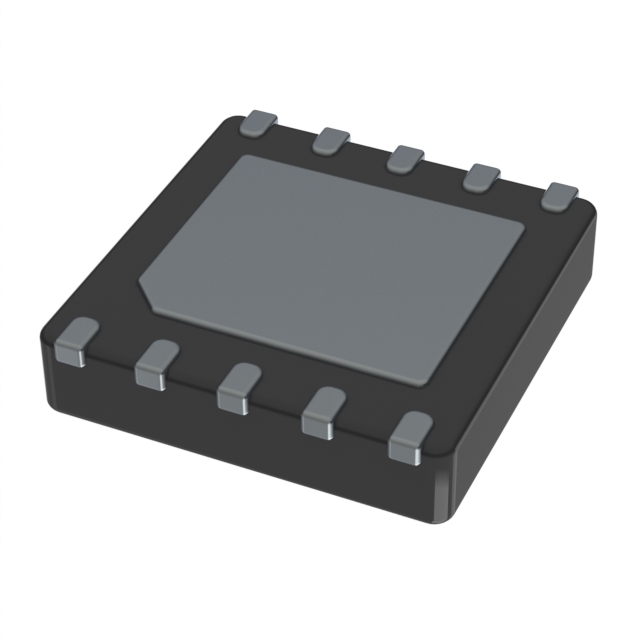

| Package / Case | 10-VDFN Exposed Pad |
| Rise / Fall Time (Typ) [custom] | 4.4 ns |
| Rise / Fall Time (Typ) [custom] | 4.6 ns |
| Supplier Device Package | PG-VDSON-10-2 |
| Voltage - Supply [Max] | 17 V |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 0.90 | |||
| 25 | $ 0.81 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.62 | |||
| 2500 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.23 | ||
| 10 | $ 0.90 | |||
| 25 | $ 0.81 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.62 | |||
| 2500 | $ 0.60 | |||
| Tape & Reel (TR) | 5000 | $ 0.59 | ||
| 10000 | $ 0.57 | |||
| 15000 | $ 0.57 | |||
Description
General part information
2EDL8034 Series
The 2EDL8034G4C is designed to drive both high-side and low-side MOSFETs in a half-bridge configuration. The floating high-side driver is capable of driving a high-side MOSFET operating up to 120 V bootstrap voltage and provides full 4 A current capability. The high-side bias voltage is generated using a bootstrap technique using an integrated bootstrap diode. The inputs of the driver are TTL logic compatible and can withstand input common mode swing from -10 V up to 20 V. Independent inputs allow controlling high- and low-side domains independently. Undervoltage lockout (UVLO) on both high- and low-side supplies forces the corresponding outputs low in case of insufficient supply. The 2EDL8034G4C is available in SON-10 pins 4 mm x 4 mm package.
