PM20C03VBDN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	PM20C03VBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Contact Shape	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Contact Material	Mounting Type	Termination	Contact Finish Thickness - Mating	Insulation Material	Connector Type
METZ CONNECT USA Inc. PM20C03VBDN	0.079 in	2 mm	0.079 in	2 mm	Unshrouded	0.079 in	2 mm	4 mm	0.157 in	2	Push-Pull	-40 °C	105 ░C	Male Pin	6	Square	Black	Gold	All	Copper Zinc	Surface Mount	Solder	Flash	Polyethylene	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

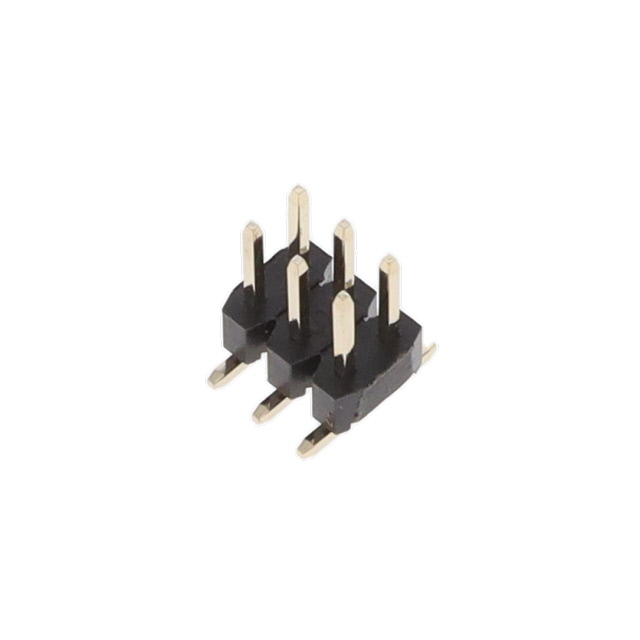

Connector Header Surface Mount 6 position 0.079" (2.00mm)
