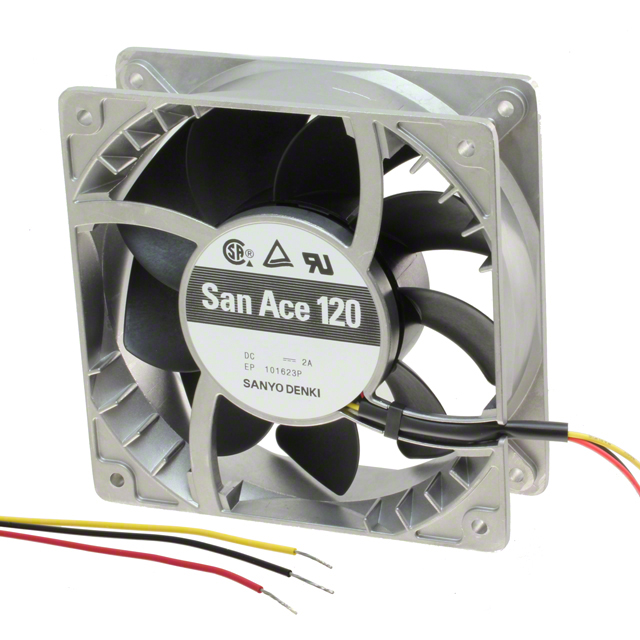

9SG1224G101

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Search across all available documentation for this part.

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9SG1224G101

Air Flow	260 CFM
Air Flow	7.28 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	64 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	48 W
RPM	6000 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	341.2 Pa
Static Pressure	1.37 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	0.882 lb
Weight	400.07 g
Width [y]	38 mm

Part	Voltage - Rated	Weight	Weight	Termination	Lifetime @ Temp.	Bearing Type	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Material - Frame	Width [y]	Material - Blade	RPM	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Noise	Features	Air Flow	Air Flow	Power (Watts)	Current Rating (Amps)
Sanyo Denki America Inc. 9SG1224G101	24 VDC	0.882 lb	400.07 g	3 Wire Leads	40000 Hrs	Ball	341.2 Pa	1.37 in H2O	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	Aluminum	38 mm	Plastic	6000 RPM	CSA TUV UL	119 mm	119 mm	64 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	260 CFM	7.28 mł/min	48 W
Sanyo Denki America Inc. 9SG1224H1D01	24 VDC	0.882 lb	400.07 g	3 Wire Leads	40000 Hrs	Ball	127 Pa	0.51 in H2O	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	Aluminum	38 mm	Plastic	3400 RPM	CSA TUV UL	120 mm	120 mm	48 dB	Locked Rotor Sensor	142 CFM	3.98 m³/min	11 W	460 mA
Sanyo Denki America Inc. 9SG1224H101	24 VDC	0.882 lb	400.07 g	3 Wire Leads	40000 Hrs	Ball	127 Pa	0.51 in H2O	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	Aluminum	38 mm	Plastic	3400 RPM		119 mm	119 mm	48 dB	Locked Rotor Protection Speed Sensor (Tach)	142 CFM	3.98 m³/min	11 W	460 mA
Sanyo Denki America Inc. 9SG1224G1D01	24 VDC	0.882 lb	400.07 g	3 Wire Leads	40000 Hrs	Ball	341.2 Pa	1.37 in H2O	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	Aluminum	38 mm	Plastic	6000 RPM	CSA TUV UL	120 mm	120 mm	64 dB(A)	Locked Rotor Sensor	260 CFM	7.28 mł/min	48 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 260.0 CFM (7.28mł/min) 3 Wire Leads
