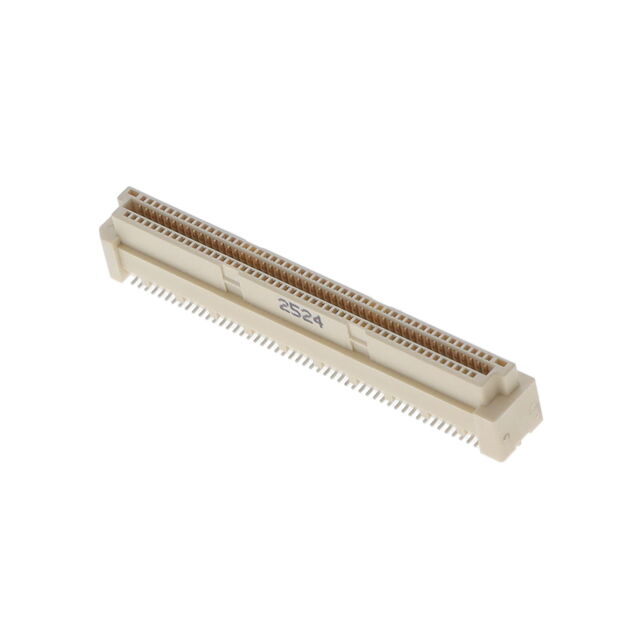

G832MB031005322HR

Active

Amphenol ICC (Commercial Products)

BTB 100P P=0.8MM RECEPTACLE H=7.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G832MB031005322HR

Active

Amphenol ICC (Commercial Products)

BTB 100P P=0.8MM RECEPTACLE H=7.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G832MB031005322HR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Pick and Place, Board Guide
Height Above Board [z]	0.303 in
Height Above Board [z]	7.7 mm
Mated Stacking Heights	10 mm, 9 mm, 12 mm, 11 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

G832MB Series

...

Part	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Number of Positions	Connector Type	Contact Finish	Features	Mated Stacking Heights	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board
Amphenol ICC (Commercial Products) G832MB110642022HR	Flash	0.8 mm	0.031 in	2	4.7 mm	0.185 in	64	Outer Shroud Contacts Plug	Gold	Board Guide Pick and Place	5 mm 7 mm 9 mm 13 mm 17 mm	Surface Mount
Amphenol ICC (Commercial Products) G832MB030401022HR	Flash	0.8 mm	0.031 in	2	3.7 mm	0.146 in	40	Center Strip Contacts Receptacle	Gold	Board Guide Pick and Place	5 mm 6 mm 7 mm 8 mm	Surface Mount
Amphenol ICC (Commercial Products) G832MB030805322HR		0.8 mm	0.031 in	2			80	Center Strip Contacts Receptacle	Gold	Board Guide Pick and Place	9 mm 10 mm 11 mm 12 mm	Surface Mount	0.303 in	7.7 mm	8 çin	0.203 çm
Amphenol ICC (Commercial Products) G832MB030807022HR	Flash	0.8 mm	0.031 in	2			80	Center Strip Contacts Receptacle	Gold	Board Guide Pick and Place	17 mm 18 mm 19 mm 20 mm	Surface Mount
Amphenol ICC (Commercial Products) G832MB010646322HR		0.8 mm	0.031 in	2	0.461 in		64	Center Strip Contacts Receptacle	Gold	Board Guide Pick and Place	13 mm 14 mm 15 mm 16 mm	Surface Mount			8 çin	0.203 çm	11.7 mm
Amphenol ICC (Commercial Products) G832MB030601022HR	Flash	0.8 mm	0.031 in	2	3.7 mm	0.146 in	60	Center Strip Contacts Receptacle	Gold	Board Guide Pick and Place	5 mm 6 mm 7 mm 8 mm	Surface Mount
Amphenol ICC (Commercial Products) G832MB031005322HR		0.8 mm	0.031 in	2			100	Center Strip Contacts Receptacle	Gold	Board Guide Pick and Place	9 mm 10 mm 11 mm 12 mm	Surface Mount	0.303 in	7.7 mm	8 çin	0.203 çm
Amphenol ICC (Commercial Products) G832MB130642322HR		0.8 mm	0.031 in	2	4.7 mm	0.185 in	64	Outer Shroud Contacts Plug	Gold	Board Guide Pick and Place	5 mm 7 mm 9 mm 13 mm 17 mm	Surface Mount			8 çin	0.203 çm
Amphenol ICC (Commercial Products) G832MB110605022HR	Flash	0.8 mm	0.031 in	2			60	Outer Shroud Contacts Plug	Gold	Board Guide Pick and Place	8 mm 10 mm 12 mm 16 mm 20 mm	Surface Mount	0.303 in	7.7 mm
Amphenol ICC (Commercial Products) G832MB110405022HR	Flash	0.8 mm	0.031 in	2			40	Outer Shroud Contacts Plug	Gold	Board Guide Pick and Place	8 mm 10 mm 12 mm 16 mm 20 mm	Surface Mount	0.303 in	7.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.69
		10	$ 3.35
		100	$ 2.95
	Digi-Reel®	1	$ 3.69
		10	$ 3.35
		100	$ 2.95
	Tape & Reel (TR)	400	$ 1.82

Description

General part information

G832MB Series

100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
