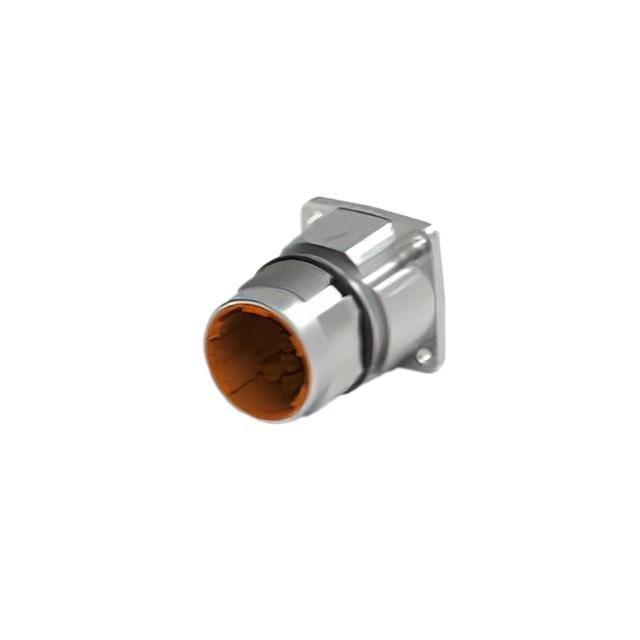

BEA144N00000200000

Active

TE Intercontec

CONN RCPT HSG MALE 9POS PNL MNT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 9POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	BEA144N00000200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	5
Number of Positions [custom]	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Unshielded
Type	For Male Pins

Part	Housing Color	Fastening Type	Shell Material	Material Flammability Rating	Orientation	Shell Finish	Note	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Type	Ingress Protection	Connector Type	Contact Shape	Mounting Feature	Shielding	Shell Size - Insert	Includes	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
TE Intercontec BEA144N00000200000	Silver	Push-Twist	Zinc Die Cast	UL94 V-0	Keyed	Nickel	Contacts Not Included	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	For Male Pins	IP66/IP67	Receptacle Housing	Circular	Flange	Unshielded	M23-9	1 Connector 1 O-Ring	PE	3	5	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 (5 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
