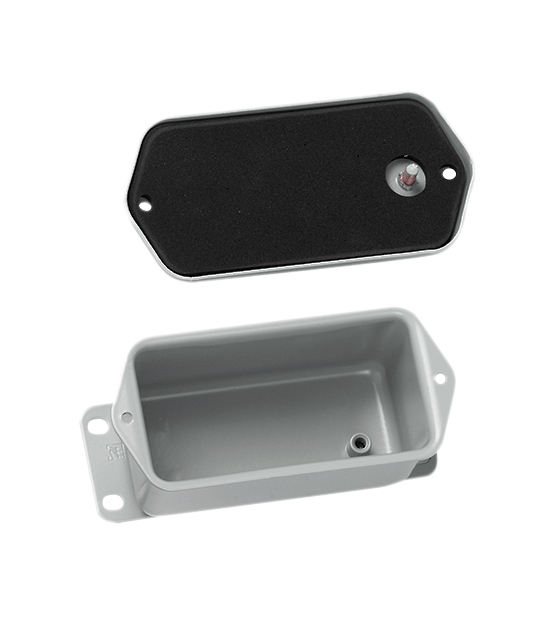

A402DSC

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STL 4.02"L X 2.01"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STL 4.02"L X 2.01"W

Technical Specifications

Parameters and characteristics for this part

Specification	A402DSC

Area (L x W)	8.04 in²
Area (L x W)	51.9 cm²
Color	Gray
Container Type	Junction Box
Design	Cover Included
Features	Wall Mount, PCB Supports, Sealing Gasket
Height [z]	51 mm
Height [z]	2.008 in
Material	Metal, Steel
Ratings	IP67, NEMA 13, NEMA 12, UL-508A, NEMA 6, NEMA 4
Size / Dimension	51 mm, 102 mm
Size / Dimension [x]	4.016 "
Size / Dimension [y]	2.008 "
Thickness	16 Gauge
Weight	362.87 g
Weight	0.8 lb

Part	Ratings	Area (L x W)	Area (L x W)	Container Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Design	Height [z]	Height [z]	Features	Color	Thickness	Material	Weight	Weight
Hoffman Enclosures, Inc. A402DSC	IP67 NEMA 12 NEMA 13 NEMA 4 NEMA 6 UL-508A	8.04 in²	51.9 cm²	Junction Box	51 mm 102 mm	4.016 "	2.008 "	Cover Included	51 mm	2.008 in	PCB Supports Sealing Gasket Wall Mount	Gray	16 Gauge	Metal Steel	362.87 g	0.8 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Cover Included 4.016" L x 2.008" W (102.00mm x 51.00mm) X 2.008" (51.00mm)
