0985 656 102/5M

Active

LUMBERG AUTOMATION

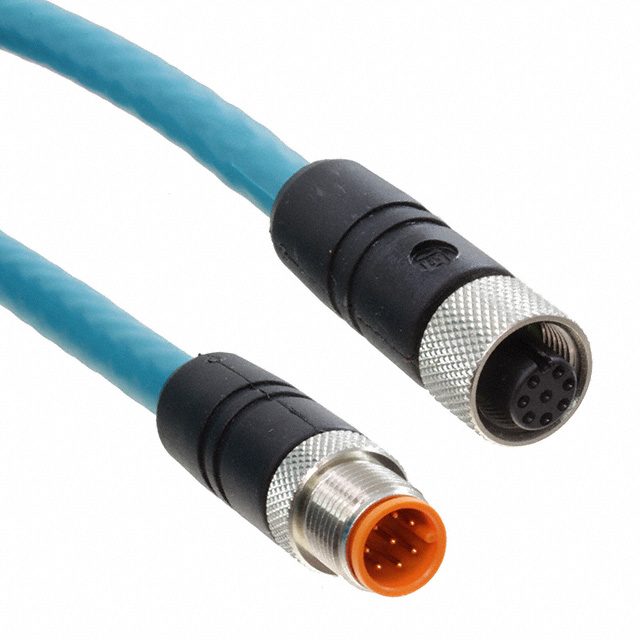

CIRC CBL 8POS RCPT TO PLUG 16.4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPROFINET® , EtherNet/IP and Ethernet Connectivity Solutions Datasheet

0985 656 102/5M

Active

LUMBERG AUTOMATION

CIRC CBL 8POS RCPT TO PLUG 16.4'

Deep-Dive with AI

DocumentsPROFINET® , EtherNet/IP and Ethernet Connectivity Solutions Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0985 656 102/5M

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Teal
Ingress Protection	IP67 - Dust Tight, Waterproof
Shielding	Shielded
Usage	Cat5

0985 Series

Part	Cable Type	Features	Mounting Type	Color	Number of Positions/Contacts	Connector Type	Style	Shielding	1st Connector Mounting Type	2nd Connector Number of Positions Loaded	1st Connector Number of Positions Loaded	1st Connector Number of Positions	Usage	1st Connector Orientation [custom]	2nd Connector Shell Size - Insert	2nd Connector Gender	Assembly Configuration	1st Connector Gender	1st Connector Shell Size - Insert	2nd Connector Mounting Type	Ingress Protection	1st Connector Type	2nd Connector Type	2nd Connector Number of Positions	Cable Material	Length [x]	Length [x]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Length	Length	1st Connector Orientation	2nd Connector Orientation
LUMBERG AUTOMATION 0985 656 500/5M	Round Cable	Molded Plugs	Free Hanging (In-Line)	Teal	8p8c (RJ45 Ethernet)	Plug to Plug	Cat5e	Double Shielded
LUMBERG AUTOMATION 0985 656 102/5M	Round			Teal				Shielded	Free Hanging (In-Line)	All	All	8 positions	Cat5	Keyed	M12	Female Sockets	Standard	Male Pins	M12	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Receptacle	Plug	8	Polyvinyl Chloride (PVC)
LUMBERG AUTOMATION 0985 656 103/3M	Round			Teal		Circular 08 pos Male to RJ45 8p8c		Shielded					Cat5													9.84 ft	3 m
LUMBERG AUTOMATION 0985 YM57530 103/5M	Round			Blue		Circular 04 pos Male to RJ45 8p4c		Shielded					Cat5e
LUMBERG AUTOMATION 0985 656 100/3M	Round			Teal				Shielded	Free Hanging (In-Line)	All	All	8 positions	Cat5	Keyed	M12		Standard	Male Pins	M12	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Receptacle	Receptacle	8	Polyvinyl Chloride (PVC)	9.84 ft	3 m
LUMBERG AUTOMATION 0985 YM57530 500/0.5M	Round Cable	Molded Plugs	Free Hanging (In-Line)	Blue		Plug to Plug	Cat5e	Shielded																		1.64 ft	500 mm	4	8
LUMBERG AUTOMATION 0985 656 500/10M	Round Cable	Molded Plugs	Free Hanging (In-Line)	Teal	8p8c (RJ45 Ethernet)	Plug to Plug	Cat5e	Double Shielded																						10 m	32.81 ft
LUMBERG AUTOMATION 0985 YM57530 500/2M	Round Cable	Molded Plugs	Free Hanging (In-Line)	Blue		Plug to Plug	Cat5e	Shielded																		6.56 ft	2 m	4	8
LUMBERG AUTOMATION 0985 806 103/10M	Round			Blue		Circular 04 pos Male to RJ45 8p4c		Unshielded					Cat5e																	10 m	32.81 ft
LUMBERG AUTOMATION 0985 YM57530 100/1M	Round			Teal				Shielded	Free Hanging (In-Line)	All	All	4	Cat5e Industrial Environments		M12		Standard	Male Pins	M12	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Receptacle	Receptacle	4	Thermoplastic Elastomer (TPE)	3.28 ft	1 m					D	D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.18
		10	$ 91.93
		25	$ 88.39
		50	$ 85.44
		100	$ 80.73

Description

General part information

0985 Series

Circular Cable Assembly Shielded 16.40' (5.00m)

Documents

Technical documentation and resources

PROFINET® , EtherNet/IP and Ethernet Connectivity Solutions

Datasheet
