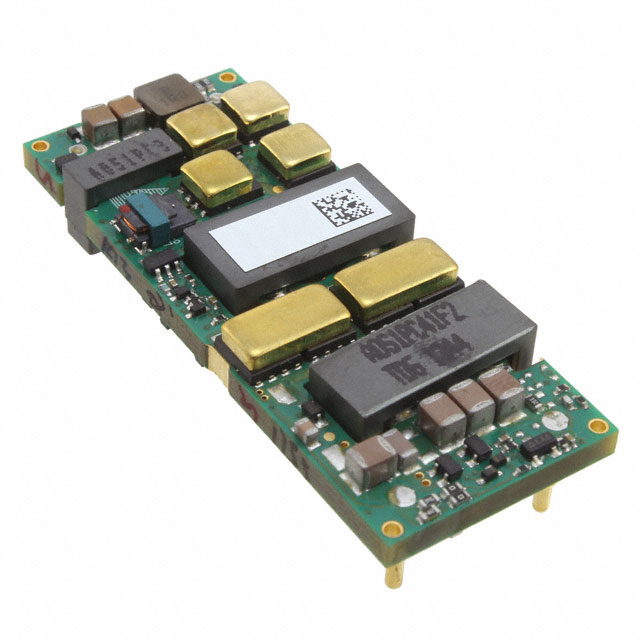

AVO240-48S12-6L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 12V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AVO240-48S12-6L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 12V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AVO240-48S12-6L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 94 % |
| Number of Outputs | 1 |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [z] | 0.37 in |
| Size / Dimension [z] | 9.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 41 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 62.89 | |
| 5 | $ 62.40 | |||
| 10 | $ 61.91 | |||
| 25 | $ 59.95 | |||
| 40 | $ 57.00 | |||
Description
General part information
AVO240 Series
Isolated Module DC DC Converter 1 Output 12V 20A 41V - 75V Input
