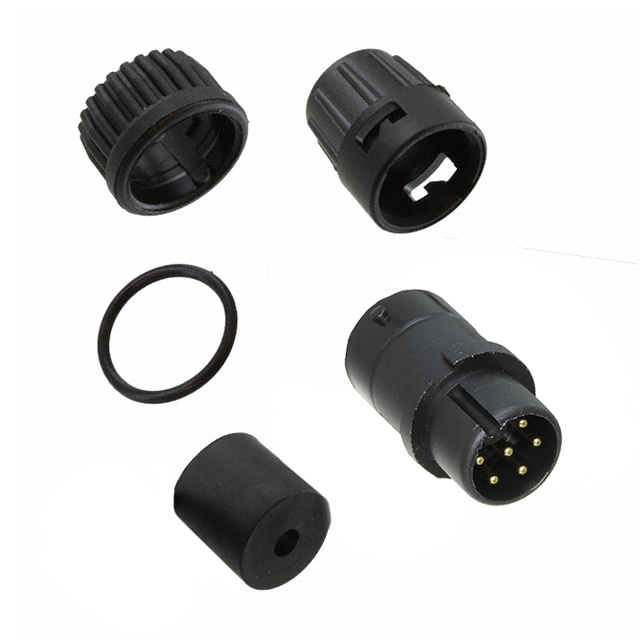

6282-6PG-311

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-6PG-311

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6282-6PG-311

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in
Cable Opening [diameter]	3.56 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

6282-6PG Series

Part	Applications	Backshell Material, Plating	Orientation	Current Rating (Amps)	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Features	Number of Positions	Fastening Type	Shielding	Contact Finish - Mating	Primary Material	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6282-6PG-311	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Keyed	Varies by Wire Gauge	Weathertight	-40 °C	115 °C	Brass	Free Hanging (In-Line)	Backshell	6	Bayonet Lock	Unshielded	Gold	Plastic	600 V	2.29 mm	0.09 in 0.14 in	3.56 mm	Male Pins Plug	Black
Conxall/Switchcraft 6282-6PG-519	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Keyed	Varies by Wire Gauge	Weathertight	-40 °C	115 °C	Brass	Free Hanging (In-Line)	Backshell	6	Bayonet Lock	Unshielded	Gold	Plastic	600 V				Male Pins Plug	Black	0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6282-6PG-522	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Keyed	Varies by Wire Gauge	Weathertight	-40 °C	115 °C	Brass	Free Hanging (In-Line)	Backshell	6	Bayonet Lock	Unshielded	Gold	Plastic	600 V				Male Pins Plug	Black	0.25 in	0.22 in	5.59 mm	6.35 mm
Conxall/Switchcraft 6282-6PG-3DC	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Keyed	Varies by Wire Gauge	Weathertight	-40 °C	115 °C	Brass	Free Hanging (In-Line)	Backshell	6	Bayonet Lock	Unshielded	Gold	Plastic	600 V				Male Pins Plug	Black
Conxall/Switchcraft 6282-6PG-516	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Keyed	Varies by Wire Gauge	Weathertight	-40 °C	115 °C	Brass	Free Hanging (In-Line)	Backshell	6	Bayonet Lock	Unshielded	Gold	Plastic	600 V				Male Pins Plug	Black					0.16 in	0.18 in	4.06 mm	4.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.01
		10	$ 12.31
		25	$ 11.14
		50	$ 10.34
		100	$ 9.62
		250	$ 8.76
		500	$ 8.19
		1000	$ 7.67

Description

General part information

6282-6PG Series

6 Position Circular Connector Plug, Male Pins Solder Cup
