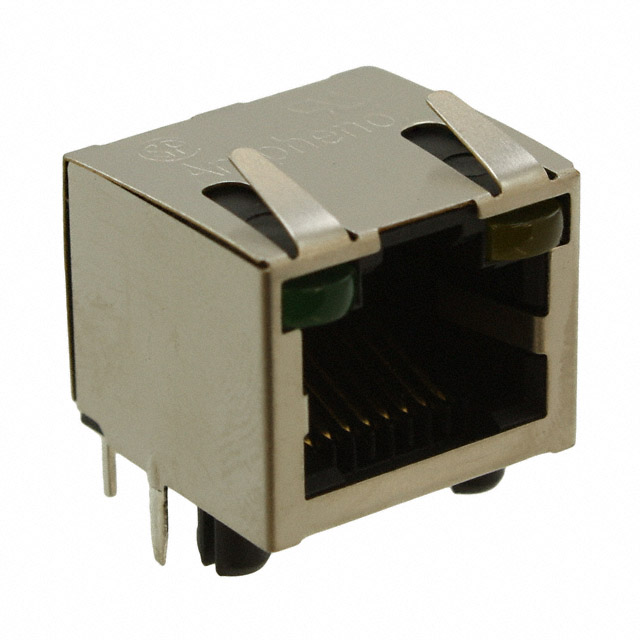

RJHSE-5384

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJHSE Series Brochure Datasheet

RJHSE-5384

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

DocumentsRJHSE Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJHSE-5384

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

RJHSE538 Series

...

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	LED Color	Tab Direction	Connector Type	Number of Positions/Contacts	Contact Finish	Termination	Number of Rows	Orientation	Shielding	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Number of Ports
Amphenol ICC (Commercial Products) RJHSE538A04	Phosphor Bronze	85 °C	-55 °C	Through Hole	Green Yellow	Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	4
Amphenol ICC (Commercial Products) RJHSE538HA1	Phosphor Bronze	85 °C	-55 °C	Through Hole	Green Yellow - Green	Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	1
Amphenol ICC (Commercial Products) RJHSE538804	Phosphor Bronze	85 °C	-55 °C	Through Hole	Green Red	Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	4
Amphenol ICC (Commercial Products) RJHSE538308	Phosphor Bronze	85 °C	-55 °C	Through Hole	Yellow	Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	8
Amphenol ICC (Commercial Products) RJHSE5389	Phosphor Bronze	85 °C	-55 °C	Through Hole	Green	Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	1
Amphenol ICC (Commercial Products) RJHSE538N02	Phosphor Bronze	85 °C	-55 °C	Through Hole		Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	2
Amphenol ICC (Commercial Products) RJHSE-5384	Phosphor Bronze	85 °C	-55 °C	Through Hole	Green Yellow	Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	1
Amphenol ICC (Commercial Products) RJHSE538N	Phosphor Bronze	85 °C	-55 °C	Through Hole		Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	1
Amphenol ICC (Commercial Products) RJHSE538LA4	Phosphor Bronze	85 °C	-55 °C	Through Hole	Green Yellow - Red	Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	4
Amphenol ICC (Commercial Products) RJHSE538CA2	Phosphor Bronze	85 °C	-55 °C	Through Hole	Green Red Yellow	Up	Jack	8p8c (RJ45 Ethernet)	Gold	Solder	1	90 °	Shielded EMI Finger	Thermoplastic	50 µin	1.27 µm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.40
		10	$ 1.83
		25	$ 1.65
		40	$ 1.56
		80	$ 1.45
		230	$ 1.29
		440	$ 1.20
		945	$ 1.11
		2400	$ 1.01

Description

General part information

RJHSE538 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
