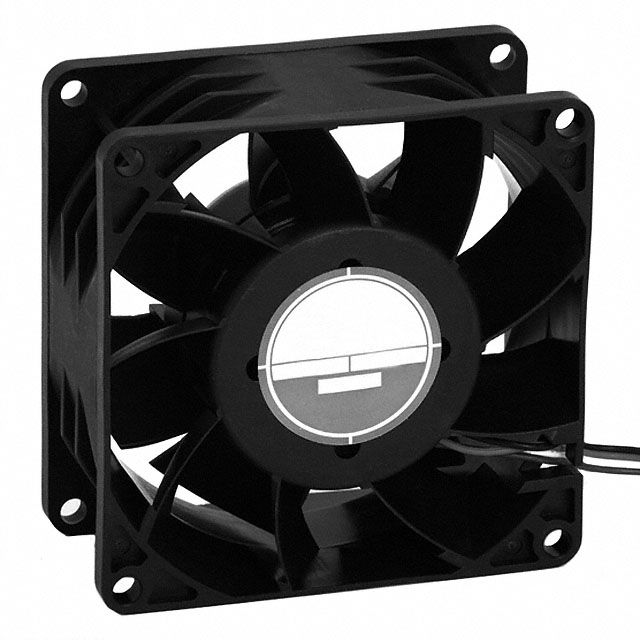

OD8038-12LB01A

Active

Orion Fans

FAN AXIAL 80.5X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD8038-12LB01A

Active

Orion Fans

FAN AXIAL 80.5X38MM 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD8038-12LB01A

Air Flow	38 CFM
Air Flow	1.06 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	32 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.7 W
RPM	2500 RPM
Size / Dimension [x]	80.5 mm
Size / Dimension [y]	80.5 mm
Static Pressure	29.9 Pa
Static Pressure	0.12 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Width [y]	38 mm

OD8038 Series

Part	Static Pressure	Static Pressure	Material - Blade	Air Flow	Air Flow	Current Rating (Amps)	Ingress Protection	Features	Bearing Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Weight	Weight	Power (Watts)	RPM	Termination	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Noise	Fan Type	Voltage - Rated	Voltage - Rated [custom]	Material - Frame
Orion Fans OD8038-12HHBIP68	194.3 Pa	0.78 in H2O	Polybutylene Terephthalate (PBT)	80.2 CFM	2.25 mł/min	900 mA	IP68 - Dust Tight Waterproof	Auto Restart	Ball	cURus TUV	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	0.461 lb	209.11 g	10.8 W	5800 RPM	2 Wire Leads	38 mm	80 mm	80 mm	52 dB	Tubeaxial	12 VDC
Orion Fans OD8038-48HBVXC10A	201.8 Pa	0.81 in H2O	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	99 CFM	2.77 mł/min			Auto Restart PWM Control Speed Sensor (Tach)	Ball		70 °C	70 °C	-10 °C	-10 °C	50000 Hrs			14 Watts	6300 RPM	4 Wire Leads	38 mm	80 mm	80 mm	57 dB	Tubeaxial		48 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD8038-12LBVXC01A	124.5 Pa	0.5 in H2O	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	83 CFM	2.32 m³/min	0.5 A		Auto Restart Speed Sensor (Tach)	Ball	cURus TUV	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs			6 W	4900 RPM	3 Wire Leads	38 mm	80 mm	80 mm		Tubeaxial	12 VDC		Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD8038-12LB01A	29.9 Pa	0.12 in H2O	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	38 CFM	1.06 mł/min	140 mA		Speed Sensor (Tach)	Ball	cURus TUV	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs			1.7 W	2500 RPM	3 Wire Leads	38 mm	80.5 mm	80.5 mm	32 dB	Tubeaxial	12 VDC		Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD8038-12MB01A	42.3 Pa	0.17 in H2O	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	46 CFM	1.29 mł/min	0.33 A		Speed Sensor (Tach)	Ball	cURus TUV	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs				3000 RPM	3 Wire Leads	38 mm	80.5 mm	80.5 mm	36 dB	Tubeaxial	12 VDC		Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD8038-12HBIP69K	144.5 Pa	0.58 in H2O	Polybutylene Terephthalate (PBT)	71 CFM	1.99 mł/min	600 mA	IP69K	Auto Restart	Ball	CE cURus TUV UR	65 °C	65 °C	-20 °C	-20 C	70000 Hrs			7.2 W	5000 RPM	2 Wire Leads	38 mm	80 mm	80 mm	49 dB	Tubeaxial	12 VDC
Orion Fans OD8038-12HHB02A	74.7 Pa	0.3 in H2O	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	61 CFM	1.71 m³/min	0.52 A		Locked Rotor Sensor	Ball	cURus TUV	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs			6.2 W	4000 RPM	3 Wire Leads	38 mm	80.5 mm	80.5 mm	44 dB	Tubeaxial	12 VDC		Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD8038-24MB-VXC5	186.8 Pa	0.75 in H2O	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 CFM	2.49 mł/min	400 mA		Auto Restart PWM Control	Ball	cURus TUV	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs			10 W	5600 RPM	3 Wire Leads	38 mm	80 mm	80 mm	54 dB	Tubeaxial	24 VDC		Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD8038-24HBVXC	201.8 Pa	0.81 in H2O	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	99 CFM	2.77 mł/min	0.5 A		Auto Restart	Ball	cURus TUV	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs			13 W	6300 RPM	2 Wire Leads	38 mm	80 mm	80 mm	57 dB	Tubeaxial	24 VDC		Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD8038-48MB-VXC	186.8 Pa	0.75 in H2O	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 CFM	2.49 mł/min	0.2 A		Auto Restart	Ball	cURus TUV	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs			10 W	5600 RPM	2 Wire Leads	38 mm	80 mm	80 mm	54 dB	Tubeaxial		48 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 14.74

Description

General part information

OD8038 Series

Fan Tubeaxial 12VDC Square - 80.5mm L x 80.5mm H Ball 38.0 CFM (1.06m³/min) 3 Wire Leads
