7441-1521-003

Active

Radiall USA, Inc.

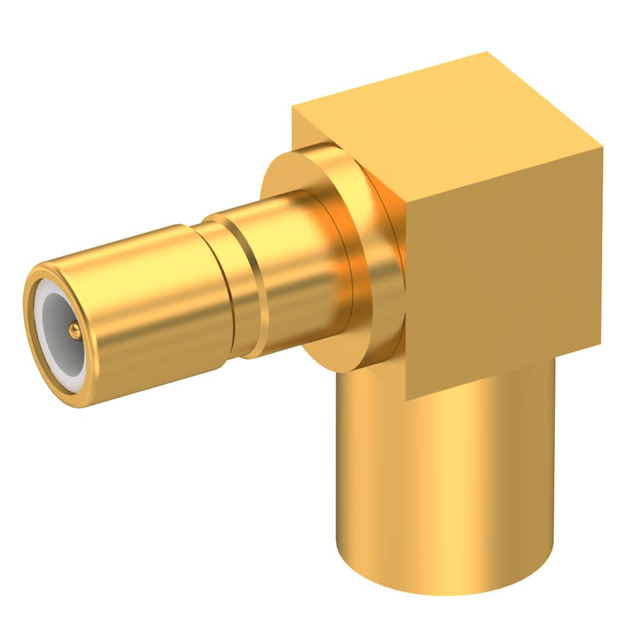

SSMB / RIGHT ANGLE JACK MALE SOL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB / RIGHT ANGLE JACK MALE SOL

Technical Specifications

Parameters and characteristics for this part

Specification	7441-1521-003

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Shield Termination	Cable Group	Body Material	Impedance	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mating Cycles	Fastening Type	Connector Style	Connector Type	Housing Color	Voltage Rating	Body Finish	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Mounting Type	Contact Termination
Radiall USA, Inc. 7441-1521-003	Crimp	188 316 RG-174	Brass	50 Ohms	Beryllium Copper	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	500	Snap-On	SSMB	Jack Male Pin	Gold	250 VDC	Gold	Gold	12.4 GHz	1	Free Hanging (In-Line) Right Angle	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 46.15

General part information

SSMB Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
