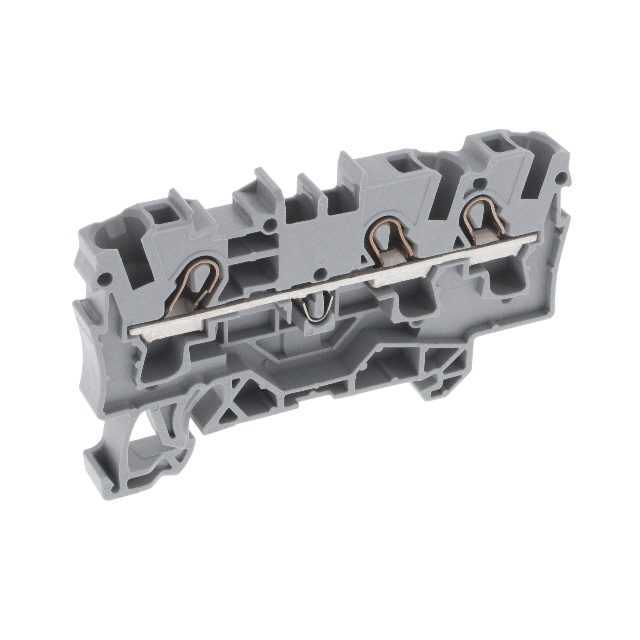

2004-1301

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 10 AWG, 6 MM², CLAMP, 32 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 10 AWG, 6 MM², CLAMP, 32 A

Technical Specifications

Parameters and characteristics for this part

Part	Color	Number of Levels	Voltage - UL	Type	Terminal - Width [y]	Voltage - IEC	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Stripping Length [Max]	Stripping Length [Min]	Current - IEC	Current - UL	Material - Insulation	For Use With/Related Products
WAGO Corporation 2004-1301	Gray	1	600 V	Feed Through	6.2 mm	800 V	Push In Spring	6 mm²	1.5 mm²	14 AWG	10 AWG	13 mm	11 mm	41 A	30 A	Polyamide (PA66) Nylon 6/6
WAGO Corporation 2004-1307	Green Yellow	1		Ground Earth	6.2 mm		Push In Spring	6 mm²	1.5 mm²	14 AWG	10 AWG	13 mm	11 mm			Polyamide (PA66) Nylon 6/6
WAGO Corporation 2004-1391	Gray			End Plate													TOPJOB®S Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 3 Position Feed Through Gray 10-14 AWG
