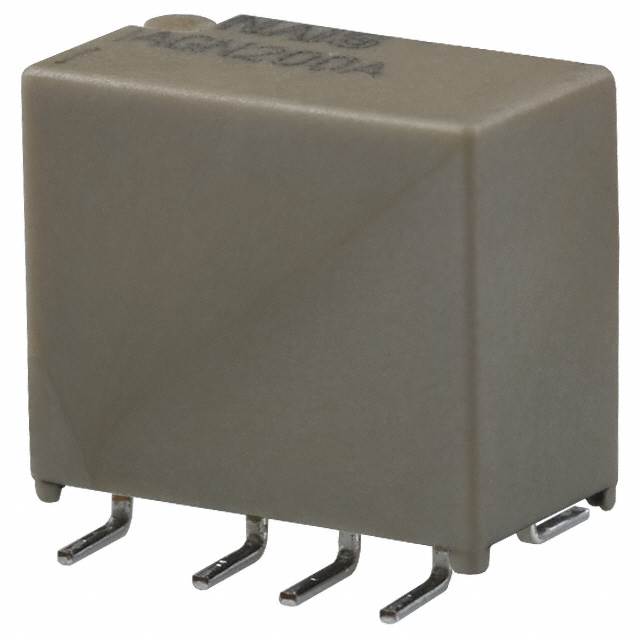

AGN200A09

Active

Panasonic Electric Works

RELAY TELECOM DPDT 1A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Relay Technical Info +2

AGN200A09

Active

Panasonic Electric Works

RELAY TELECOM DPDT 1A 9V

Deep-Dive with AI

DocumentsHow to Read Date Codes Relay Technical Info +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AGN200A09

Approval Agency	BSI, cURus
Coil Current	15.5 mA
Coil Resistance	579 Ohms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	1 A
Load - Max Switching	125 VA, 110 W
Mounting Type	Surface Mount
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage	110 VDC, 125 VAC
Termination Style	Gull Wing

AGN200 Series

Part	Contact Material	Seal Rating	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Load - Max Switching	Operate Time	Coil Voltage	Coil Type	Must Operate Voltage	Mounting Type	Approval Agency	Contact Form	Release Time	Contact Rating (Current)	Switching Voltage	Coil Current	Termination Style	Must Release Voltage
Panasonic Electric Works AGN200A4H	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	145 Ohms	85 °C	-40 °C	Telecom	110 W 125 VA	4 ms	4.5 VDC	Non Latching	3.38 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	31 mA	Gull Wing	0.45 VDC
Panasonic Electric Works AGN200S1HZ	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	16 Ohms	85 °C	-40 °C	Telecom	110 W 125 VA	4 ms	1.5 VDC	Non Latching	1.13 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	93.8 mA	Gull Wing	0.15 VDC
Panasonic Electric Works AGN200A12Z	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	1030 Ohms	85 °C	-40 °C	Telecom	110 W 125 VA	4 ms	12 VDC	Non Latching	9 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	11.7 mA	Gull Wing	1.2 VDC
Panasonic Electric Works AGN200A09	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	579 Ohms	85 °C	-40 °C	Telecom	110 W 125 VA	4 ms	9 VDC	Non Latching	6.75 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	15.5 mA	Gull Wing	0.9 VDC
Panasonic Electric Works AGN200S24Y	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	2.504 kOhms	85 °C	-40 °C	General Purpose	110 W 125 VA	4 ms	24 VDC	Non Latching	18 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	9.6 mA	Gull Wing	2.4 VDC
Panasonic Electric Works AGN200A09Y	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	579 Ohms	85 °C	-40 °C	General Purpose	110 W 125 VA	4 ms	9 VDC	Non Latching	6.75 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	15.5 mA	Gull Wing	0.9 VDC
Panasonic Electric Works AGN200S12Z	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	1030 Ohms	85 °C	-40 °C	Telecom	110 W 125 VA	4 ms	12 VDC	Non Latching	9 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	11.7 mA	Gull Wing	1.2 VDC
Panasonic Electric Works AGN200A12W	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	1.028 kOhms	85 °C	-40 °C	General Purpose	110 W 125 VA	4 ms	12 VDC	Non Latching	9 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	11.7 mA	Gull Wing	1.2 VDC
Panasonic Electric Works AGN200A03W	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	64.2 Ohms	85 °C	-40 °C	General Purpose	110 W 125 VA	4 ms		Non Latching	2.25 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	46.7 mA	Gull Wing	0.3 VDC
Panasonic Electric Works AGN200S09Y	Gold (Au) Silver Palladium (AgPd)	Sealed - Fully	579 Ohms	85 °C	-40 °C	General Purpose	110 W 125 VA	4 ms	9 VDC	Non Latching	6.75 VDC	Surface Mount	BSI cURus	DPDT (2 Form C)	4 ms	1 A	110 VDC 125 VAC	15.5 mA	Gull Wing	0.9 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 4.97
