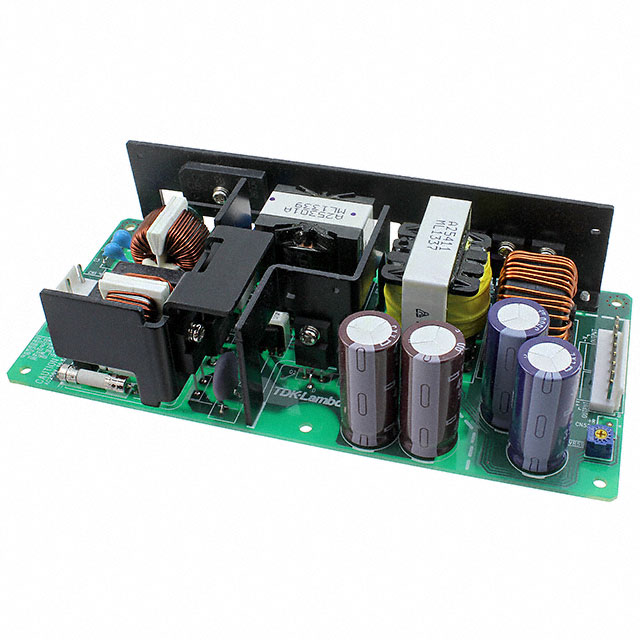

ZWS300BAF-48/R

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 300W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZWS300BAF-48/R

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 300W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZWS300BAF-48/R

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	6.3 A
Efficiency	88 %
Features	Load Sharing, DC Input Capable, Universal Input, Adjustable Output, Remote On/Off
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	336 W
Power (Watts)	300 W
Size / Dimension [x]	7.09 in
Size / Dimension [x]	180 mm
Size / Dimension [y]	84 mm
Size / Dimension [y]	3.31 "
Size / Dimension [z]	1.65 "
Size / Dimension [z]	42 mm
Type	Open Frame
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

ZWS300 Series

Part	Power (Watts)	Power (Watts)	Features	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Voltage - Isolation	Efficiency	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1
TDK-LAMBDA ZWS300BAF-12/A	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Enclosed	3000 V	89 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	12 V	85 VAC	265 VAC	25 A
TDK-LAMBDA ZWS300BAF-48/R	336 W	300 W	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Open Frame	3000 V	88 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	48 V	85 VAC	265 VAC	6.3 A
TDK-LAMBDA ZWS300BAF-36/TA	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Enclosed	3000 V	88 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	36 V	85 VAC	265 VAC	8.4 A
TDK-LAMBDA ZWS300BAF-48/TA	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Enclosed	3000 V	88 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	48 V	85 VAC	265 VAC	6.3 A
TDK-LAMBDA ZWS300BAF-48	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Open Frame	3000 V	88 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	48 V	85 VAC	265 VAC	6.3 A
TDK-LAMBDA ZWS300BAF-48/A	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Enclosed	3000 V	88 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	48 V	85 VAC	265 VAC	6.3 A
TDK-LAMBDA ZWS300BAF-12/L	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Open Frame	3000 V	89 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	12 V	85 VAC	265 VAC	25 A
TDK-LAMBDA ZWS300BAF-48/L	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Open Frame	3000 V	88 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	48 V	85 VAC	265 VAC	6.3 A
TDK-LAMBDA ZWS300BAF-36/CO2	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Conformal Coated Open Frame	3000 V	88 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	36 V	85 VAC	265 VAC	8.4 A
TDK-LAMBDA ZWS300BAF-24/A	336 W	300 W	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	Enclosed	3000 V	88 %	ITE (Commercial)	Chassis Mount	-10 °C	70 °C	CE cURus TUV	24 V	85 VAC	265 VAC	12.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 221.53

Description

General part information

ZWS300 Series

Open Frame AC DC Converters 1 Output 48V 85 ~ 265 VAC Input
