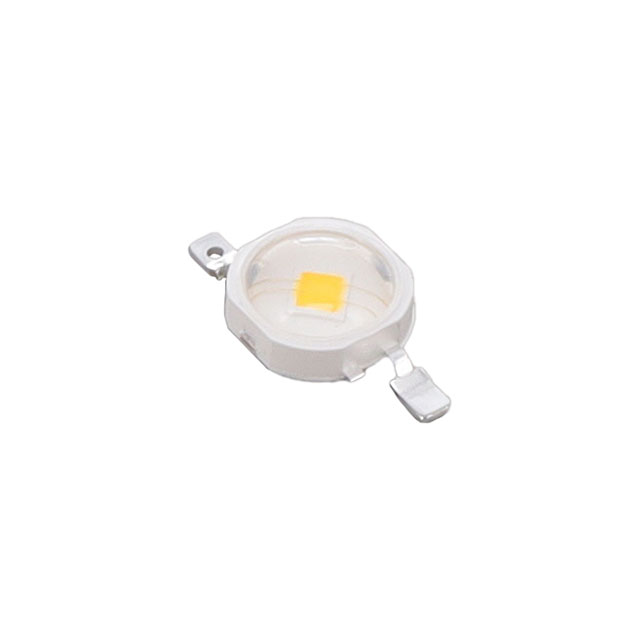

ASMT-AY31-NUW01
ObsoleteBroadcom Limited
LED ASMT-AX3X WARM WHT 3100K SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMT-AY31-NUW01
ObsoleteBroadcom Limited
LED ASMT-AX3X WARM WHT 3100K SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMT-AY31-NUW01 |
|---|---|
| CCT (K) | 3100 K |
| Color | White, Warm |
| Current - Max [Max] | 700 mA |
| Current - Test | 350 mA |
| Flux @ 25°C, Current - Test | 115 lm |
| Height - Seated (Max) | 4.2 mm |
| Height - Seated (Max) [Max] | 0.165 in |
| Lumens/Watt @ Current - Test | 91 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing |
| Size / Dimension [x] | 0.291 " |
| Size / Dimension [x] | 7.4 mm |
| Size / Dimension [y] | 0.291 " |
| Size / Dimension [y] | 7.4 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.22 | |
| 10 | $ 4.37 | |||
| 100 | $ 3.42 | |||
| Tape & Reel (TR) | 250 | $ 3.19 | ||
| 500 | $ 3.05 | |||
| 750 | $ 2.98 | |||
| 1250 | $ 2.90 | |||
| 1750 | $ 2.85 | |||
| 2500 | $ 2.81 | |||
Description
General part information
ASMT-AY31 Series
LED Lighting ASMT-Ax3x White, Warm 3100K 3.6V 350mA 140° 2-SMD, Gull Wing
