PM3-PRD

Active

Bivar Inc.

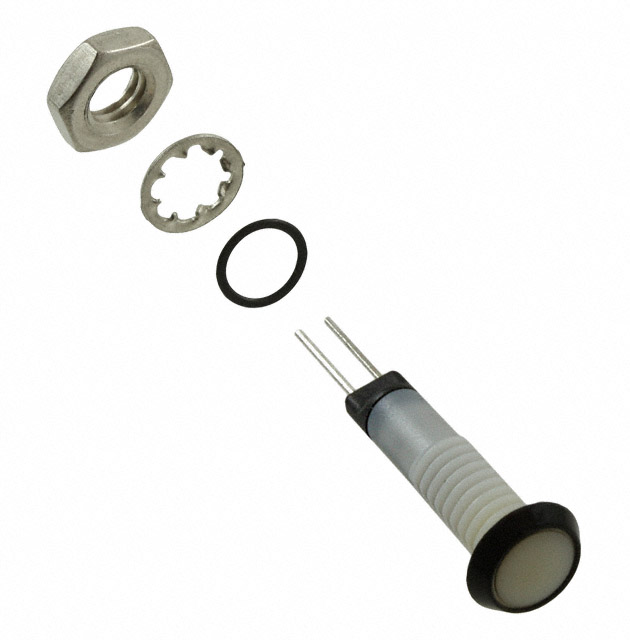

LED PANEL MOUNT INDICATOR, RED, 48 V, 5.943 MM, 20 MA, 40 MCD, IP67

Search across all available documentation for this part.

Active

Bivar Inc.

LED PANEL MOUNT INDICATOR, RED, 48 V, 5.943 MM, 20 MA, 40 MCD, IP67

Technical Specifications

Parameters and characteristics for this part

Specification	PM3-PRD

Ingress Protection	IP67
Lamp Color	Red
Lens Color	White
Lens Size [diameter]	5.9 mm
Lens Transparency	Diffused
Millicandela Rating	40 mcd
Panel Cutout Dimensions [custom]	4.83 mm
Panel Cutout Dimensions [custom]	0.19 "
Panel Cutout Shape	Round
Ratings	AC/DC
Type	LED
Viewing Angle	120 °
Voltage [Max]	48 V
Voltage [Min]	8 V
Wavelength - Peak	645 nm

Part	Lens Transparency	Viewing Angle	Lamp Color	Lens Size [diameter]	Panel Cutout Shape	Wavelength - Peak	Lens Color	Type	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Millicandela Rating	Ratings	Ingress Protection	Voltage [Min]	Voltage [Max]
Bivar Inc. PM3-PRD	Diffused	120 °	Red	5.9 mm	Round	645 nm	White	LED	4.83 mm	0.19 "	40 mcd	AC/DC	IP67	8 V	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 120° 8V ~ 48V 20mA
