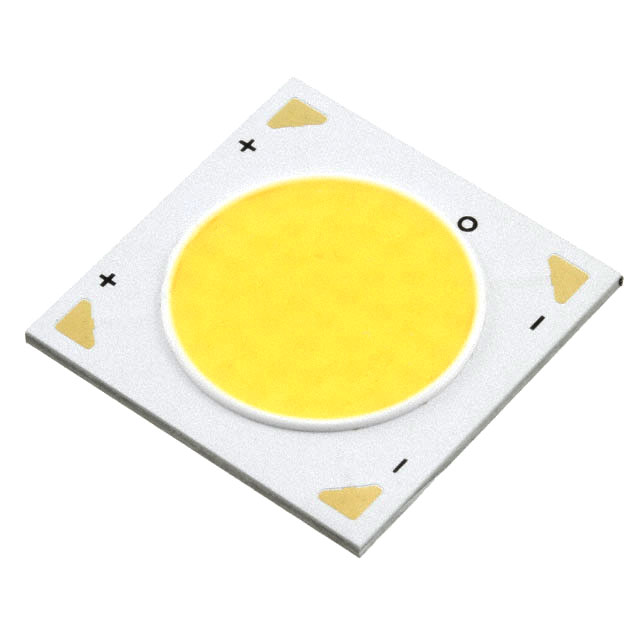

BXRE-50G3001-D-24

Obsolete

BRIDGELUX

LED COB V15 ARRAY WHT SQU 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-50G3001-D-24

Obsolete

BRIDGELUX

LED COB V15 ARRAY WHT SQU 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-50G3001-D-24

CCT (K)	5000 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.4 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	15.2 mm
Lumens/Watt @ Current - Test	115 lm/W
Luminous Flux @ Current/Temperature	2898 lm
Size / Dimension [x]	21 mm
Size / Dimension [y]	21 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	36 V

BXRE-50 Series

...

Part	Lens Type	Current - Test	Color	Height [z]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Configuration	Type	Viewing Angle	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Features
BRIDGELUX BXRE-50E1001-B-73	Flat	270 mA	Cool White	1.7 mm	33.8 V	85 °C	1355 lm	147 lm/W	Square	Chip On Board (COB)	120 °	540 mA	10.2 mm	80
BRIDGELUX BXRE-50C6501-B-73	Flat		Cool White	1.7 mm	50.7 V	85 °C	9694 lm	164 lm/W	Square	Chip On Board (COB)	120 °	2.34 A	22.6 mm	70	28 mm	28 mm
BRIDGELUX BXRE-50C0801-D-73	Flat	350 mA	Cool White	1.7 mm	16.7 V	85 °C	932 lm	159 lm/W	Square	Chip On Board (COB)	120 °	700 mA	8.1 mm	70	12.5 mm	12.5 mm
BRIDGELUX BXRE-50G08F0-E-83	Flat		Cool White	1.65 mm	33.7 V	85 °C	857 lm	170 lm/W	Square	Chip On Board (COB)	120 °	150 mA	8.5 mm	90	12.5 mm	12.5 mm	5000 K	Dimming
BRIDGELUX BXRE-50C6500-H-24	Flat		Cool White	1.7 mm	34.7 V	85 °C	6525 lm		Square	Chip On Board (COB)	120 °	2.8 A	22 mm	70	28 mm	28 mm	5000 K
BRIDGELUX BXRE-50G3001-D-24	Flat		Cool White	1.7 mm	36 V		2898 lm	115 lm/W	Square	Chip On Board (COB)	120 °	1.4 A	15.2 mm	90	21 mm	21 mm	5000 K
BRIDGELUX BXRE-50C6501-D-73	Flat		Cool White	1.7 mm	33.4 V	85 °C	7706 lm		Square	Chip On Board (COB)	120 °	2.8 A	22.6 mm	70	28 mm	28 mm
BRIDGELUX BXRE-50E0800-A-24	Flat	175 mA	Cool White	1.7 mm	34.6 V	85 °C	751 lm		Square	Chip On Board (COB)	120 °	350 mA	8.1 mm	80	12.5 mm	12.5 mm	5000 K
BRIDGELUX BXRE-50G40F0-C-83	Flat		Cool White	1.65 mm	34.9 V		6646 lm	181 lm/W	Square	Chip On Board (COB)	120 °	1.05 A	19.6 mm	90	24 mm	24 mm	5000 K	Dimming
BRIDGELUX BXRE-50C0800-A-04	Flat	175 mA	Cool White	1.7 mm	35.6 V		850 lm	136 lm/W	Square	Chip On Board (COB)	120 °	350 mA	8.1 mm	70	12.5 mm	12.5 mm	5000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRE-50 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V15 Array White, Cool Square
