BCS-103-LM-D-PE-BE

Active

Samtec Inc.

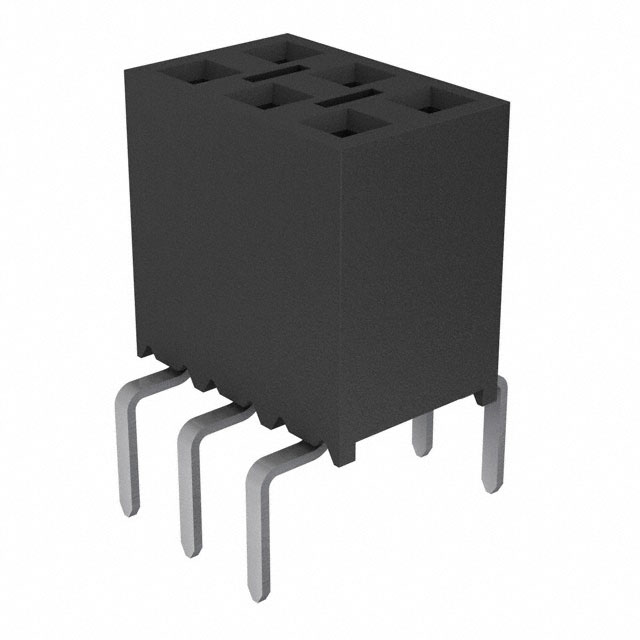

CONN RCPT 6POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBCS Series Other Related Documents 01 BCS Datasheet +1

BCS-103-LM-D-PE-BE

Active

Samtec Inc.

CONN RCPT 6POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsBCS Series Other Related Documents 01 BCS Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BCS-103-LM-D-PE-BE

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.128 "
Contact Length - Post	3.25 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.6 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	475 VAC

BCS-103 Series

Part	Fastening Type	Insulation Color	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Contact Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Voltage Rating	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Shape	Number of Positions Loaded [custom]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. BCS-103-L-D-PE	Push-Pull	Black	4.6 A	UL94 V-0	10 çin	0.25 çm	2	1.27 µm	50 µin	Through Hole	All	0.128 "	3.25 mm	0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder	6	Female Socket	Phosphor Bronze	2.54 mm	0.1 in	Pass Through Receptacle	475 VAC	7.37 mm	0.29 in	Gold	Square
Samtec Inc. BCS-103-L-D-HE-002	Push-Pull	Black	4.6 A	UL94 V-0	10 çin	0.25 çm	2			Through Hole Right Angle				0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder	6	Female Socket	Phosphor Bronze	2.54 mm	0.1 in	Receptacle	475 VAC	5.33 mm	0.21 in	Gold	Square	5	3.18 mm	0.125 in
Samtec Inc. BCS-103-F-S-PE	Push-Pull	Black	4.6 A	UL94 V-0	3 µin	0.076 µm	1			Through Hole	All	0.128 "	3.25 mm	0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder		Female Socket	Phosphor Bronze			Pass Through Receptacle	475 VAC	7.37 mm	0.29 in	Gold	Square
Samtec Inc. BCS-103-T-S-PE-BE	Push-Pull	Black	4.6 A	UL94 V-0			1			Through Hole	All	0.128 "	3.25 mm	0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder		Female Socket	Phosphor Bronze			Pass Through Receptacle	475 VAC	7.37 mm	0.29 in		Square
Samtec Inc. BCS-103-T-D-HE	Push-Pull	Black	4.6 A	UL94 V-0			2			Through Hole Right Angle	All			0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder	6	Female Socket	Phosphor Bronze	2.54 mm	0.1 in	Receptacle	475 VAC	5.33 mm	0.21 in		Square		3.18 mm	0.125 in
Samtec Inc. BCS-103-LM-D-PE-BE	Push-Pull	Black	4.6 A	UL94 V-0	10 çin	0.25 çm	2			Through Hole	All	0.128 "	3.25 mm	0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder	6	Female Socket	Phosphor Bronze	2.54 mm	0.1 in	Pass Through Receptacle	475 VAC	7.37 mm	0.29 in	Gold	Square
Samtec Inc. BCS-103-TM-D-PE	Push-Pull	Black	4.6 A	UL94 V-0			2			Through Hole	All	0.128 "	3.25 mm	0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder	6	Female Socket	Phosphor Bronze	2.54 mm	0.1 in	Pass Through Receptacle	475 VAC	7.37 mm	0.29 in		Square
Samtec Inc. BCS-103-F-S-PE-BE	Push-Pull	Black	4.6 A	UL94 V-0	3 µin	0.076 µm	1			Through Hole	All	0.128 "	3.25 mm	0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder		Female Socket	Phosphor Bronze			Pass Through Receptacle	475 VAC	7.37 mm	0.29 in	Gold	Square
Samtec Inc. BCS-103-T-D-PE	Push-Pull	Black	4.6 A	UL94 V-0			2			Through Hole	All	0.128 "	3.25 mm	0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder	6	Female Socket	Phosphor Bronze	2.54 mm	0.1 in	Pass Through Receptacle	475 VAC	7.37 mm	0.29 in		Square
Samtec Inc. BCS-103-L-S-HE	Push-Pull	Black	4.6 A	UL94 V-0	10 çin	0.25 çm	1	1.27 µm	50 µin	Through Hole Right Angle	All			0.1 in	2.54 mm	Tin	-55 °C	125 °C	Solder		Female Socket	Phosphor Bronze			Receptacle	475 VAC			Gold	Square		3.18 mm	0.125 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.26

Description

General part information

BCS-103 Series

6 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

BCS Series Other Related Documents 01

BCS Datasheet

Datasheet
