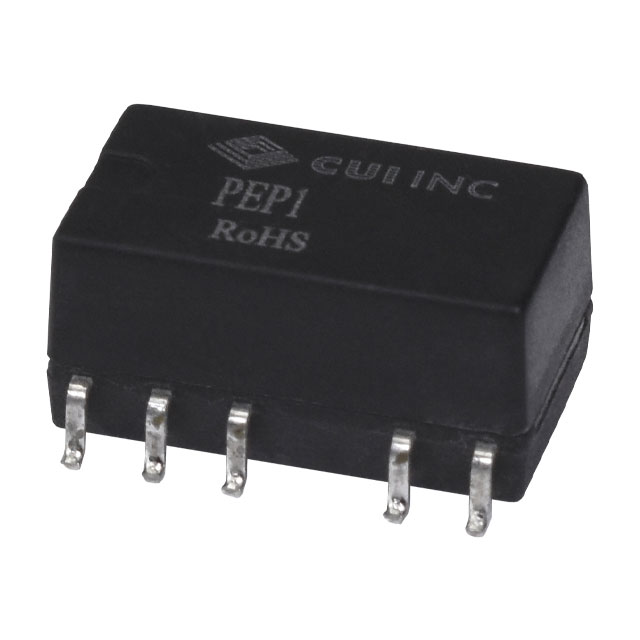

PEP1-S5-D3-M

CUI Inc.

DC DC CONVERTER +/-3.3V 997MW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PEP1-S5-D3-M

CUI Inc.

DC DC CONVERTER +/-3.3V 997MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEP1-S5-D3-M

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max)	151 mA
Efficiency	74 %
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	10 Leads
Package / Case	12-SMD Module
Power (Watts)	997 mW
Size / Dimension [x]	0.6 in
Size / Dimension [x]	15.2 mm
Size / Dimension [y]	0.33 in
Size / Dimension [y]	8.5 mm
Size / Dimension [z]	7.3 mm
Size / Dimension [z]	0.29 "
Standard Number	62368-1, 55024, 55032 Class A
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V
Voltage - Output 2	-3.3 V

PEP1-S5 Series

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Efficiency	Voltage - Output 1	Standard Number	Package / Case	Package / Case	Mounting Type	Current - Output (Max)	Voltage - Isolation	Power (Watts)	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Applications	Current - Output (Max) [Max]
CUI Inc. PEP1-S5-D3-M	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	CB Scheme EN IEC UL	74 %	3.3 V	55024 55032 Class A 62368-1	10 Leads	12-SMD Module	Surface Mount	151 mA	3000 V	997 mW	-3.3 V	-40 °C	105 C	Isolated Module	2	4.5 V	5.5 V	ITE (Commercial)
CUI Inc. PEP1-S5-D3-M-TR	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	CB Scheme EN IEC UL	74 %	3.3 V	55024 55032 Class A 62368-1	10 Leads	12-SMD Module	Surface Mount	151 mA	3000 V	997 mW	-3.3 V	-40 °C	105 C	Isolated Module	2	4.5 V	5.5 V	ITE (Commercial)
CUI Inc. PEP1-S5-D15-M	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	CB Scheme EN IEC UL	83 %	15 V	55024 55032 Class A 62368-1	10 Leads	12-SMD Module	Surface Mount	34 mA	3000 V		-15 V	-40 °C	105 C	Isolated Module	2	4.5 V	5.5 V	ITE (Commercial)
CUI Inc. PEP1-S5-S9-M-TR	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	CB Scheme EN IEC UL	83 %	9 V	55024 55032 Class A 62368-1	10 Leads	12-SMD Module	Surface Mount		3000 V			-40 °C	105 C	Isolated Module	1	4.5 V	5.5 V	ITE (Commercial)
CUI Inc. PEP1-S5-S15-M	7.3 mm	0.6 in	0.33 in	15.2 mm	0.29 "	8.5 mm	CB Scheme EN IEC UL	83 %	15 V	55024 55032 Class A 62368-1	10 Leads	12-SMD Module	Surface Mount		3000 V			-40 °C	105 C	Isolated Module	1	4.5 V	5.5 V	ITE (Commercial)	67 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.91
		5	$ 4.73
		10	$ 4.65

Description

General part information

PEP1-S5 Series

Isolated Module DC DC Converter 2 Output 3.3V -3.3V 151mA, 151mA 4.5V - 5.5V Input
