PPT2-2

Active

Bertech

TAPE MASKING AMBER 2"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPT2-2

Active

Bertech

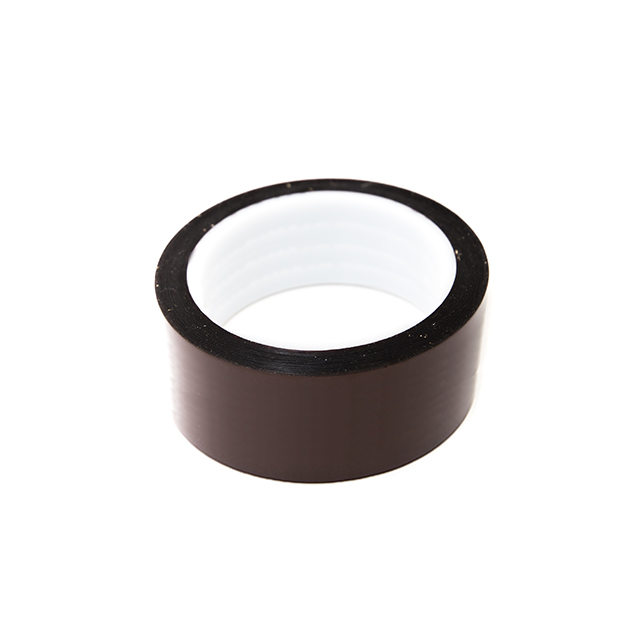

TAPE MASKING AMBER 2"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPT2-2

Adhesive	Silicone
Backing, Carrier	Polyimide
Color	Amber
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Masking
Temperature Range [Max]	230 °C, 260 °C
Temperature Range [Min]	-100 °F, -73 °C
Thickness	0.0035 "
Thickness	88.9 microns
Thickness	0.089 mm
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	2 mils
Thickness - Backing, Carrier	0.05 mm
Usage	Masking, High Temperature
Width [y]	2 "
Width [y]	50.8 mm

PPT2 Series

Part	Thickness	Thickness	Thickness	Length	Length	Length	Tape Type	Usage	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Backing, Carrier	Width [x]	Width [x]	Shelf Life Start	Shelf Life	Temperature Range [Min]	Temperature Range [Max]	Width [y]	Width [y]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Width	Width	Width	Width [x]
Bertech PPT2-4	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.05 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide	4 "	101.6 mm	Date of Manufacture	18 Months	-100 °F -73 °C	230 °C 260 °C
Bertech PPT2-50MM	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.051 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide							50 mm	1.97 in	-73 °C	260 °C	-99 °F	500 °F
Bertech PPT2-5/8	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Flame Retardant Masking Masking High Temperature UL Recognized	Amber	0.002 "	2 mils	0.051 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide									-73 °C	260 °C	-99 °F	500 °F	0.625 in	0.63 in	16 mm
Bertech PPT2-11/16	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.051 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide	0.69 in	17.48 mm							-73 °C	260 °C	-99 °F	500 °F				0.6875 in
Bertech PPT2-2	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.05 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide			Date of Manufacture	18 Months	-100 °F -73 °C	230 °C 260 °C	50.8 mm	2 "
Bertech PPT2-1	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.05 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide	1 in	25.4 mm	Date of Manufacture	18 Months	-100 °F -73 °C	230 °C 260 °C
Bertech PPT2-1/8	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.05 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide			Date of Manufacture	18 Months	-100 °F -73 °C	230 °C 260 °C							0.125 "	0.13 in	3.18 mm
Bertech PPT2-20MM	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.051 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide	0.79 in	20 mm							-73 °C	260 °C	-99 °F	500 °F
Bertech PPT2-15MM	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.051 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide									-73 °C	260 °C	-99 °F	500 °F		0.59 in	15 mm
Bertech PPT2-3	0.0035 "	88.9 microns	0.089 mm	36 yd	32.9 m	108 ft	Masking	Masking High Temperature	Amber	0.002 "	2 mils	0.05 mm	Silicone	1.5 mils	0.0015 in	0.038 mm	Polyimide	3 in	76.2 mm	Date of Manufacture	18 Months	-100 °F -73 °C	230 °C 260 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.43
		3	$ 30.04
		5	$ 29.02
		7	$ 28.33
		10	$ 27.65
		25	$ 25.94
		50	$ 24.58
		100	$ 23.38

Description

General part information

PPT2 Series

Masking Tape Silicone Adhesive Amber 2.00" (50.80mm) X 108' (32.9m) 36 yds

Documents

Technical documentation and resources
