LZ1-10G100-0000

Obsolete

ams-OSRAM USA INC.

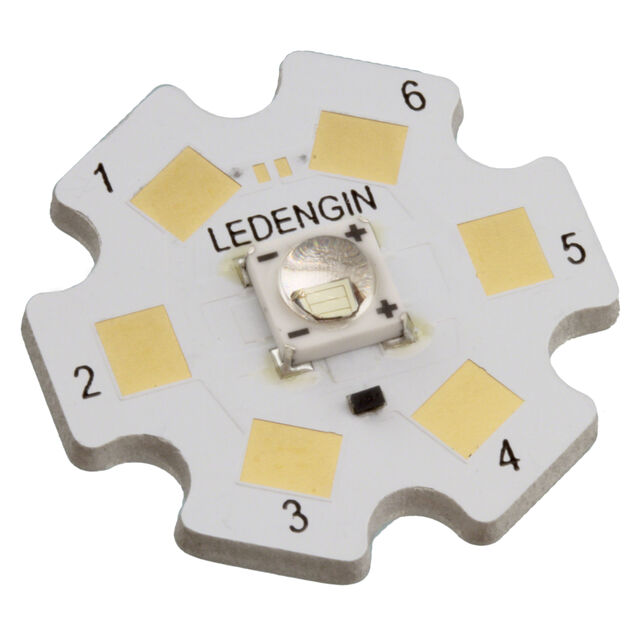

LED MOD LZ1 GREEN STARBOARD

Deep-Dive with AI

Search across all available documentation for this part.

LZ1-10G100-0000

Obsolete

ams-OSRAM USA INC.

LED MOD LZ1 GREEN STARBOARD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LZ1-10G100-0000

Color	Green
Configuration	Starboard
Current - Max [Max]	1.2 A
Current - Test	1 A
Height [z]	4.5 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	3.2 mm
Lumens/Watt @ Current - Test	53 lm/W
Luminous Flux @ Current/Temperature	200 lm
Luminous Flux @ Current/Temperature [Max]	285 lm
Luminous Flux @ Current/Temperature [Min]	145 lm
Size / Dimension [diameter]	19.9 mm
Type	LED Module
Viewing Angle	80 °
Voltage - Forward (Vf) (Typ)	3.7 V
Wavelength	525 nm

LZ1-10 Series

Part	Voltage - Forward (Vf) (Typ)	Wavelength	Viewing Angle	Height [z]	Light Emitting Surface (LES) [diameter]	Size / Dimension [diameter]	Current - Test	Lens Type	Current - Max [Max]	Type	Configuration	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Color	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Viewing Angle [custom]	CCT (K)
ams-OSRAM USA INC. LZ1-10G100-0G23	3.75 V	525 nm	80 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard	215 lm	145 lm	285 lm	Green	57 lm/W
ams-OSRAM USA INC. LZ1-10B200-0B34	3.6 V	465 nm	80 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard	40 lm			Blue	11 lm/W
ams-OSRAM USA INC. LZ1-10G100-0000	3.7 V	525 nm	80 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard	200 lm	145 lm	285 lm	Green	53 lm/W
ams-OSRAM USA INC. LZ1-10A100-0000	2.6 V	590 nm	76 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard	105 lm			Amber	40 lm/W
ams-OSRAM USA INC. LZ1-10WW00-0030	3.6 V		85 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard	180 lm	146 lm	220 lm	Warm White	50 lm/W	85
ams-OSRAM USA INC. LZ1-10CW00-0050	3.6 V		85 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard	227 lm			Cool White	63 lm/W
ams-OSRAM USA INC. LZ1-10R200-0000	2.6 V	660 nm		4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard				Red			90 °
ams-OSRAM USA INC. LZ1-10NW00-0040	3.6 V		85 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard	216 lm	146 lm	285 lm	Neutral White	60 lm/W	82		4000 K
ams-OSRAM USA INC. LZ1-10R300-0000	2.6 V		76 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard				Red
ams-OSRAM USA INC. LZ1-10NW00-P040	3.6 V		85 °	4.5 mm	3.2 mm	19.9 mm	1 A	Domed	1.2 A	LED Module	Starboard	234 lm			Neutral White	65 lm/W	82		4000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LZ1-10 Series

LED Lighting COBs Engines Modules LED Module LZ1 Green Starboard

Documents

Technical documentation and resources

No documents available
