337-084-500-204
ActiveEDAC Inc.

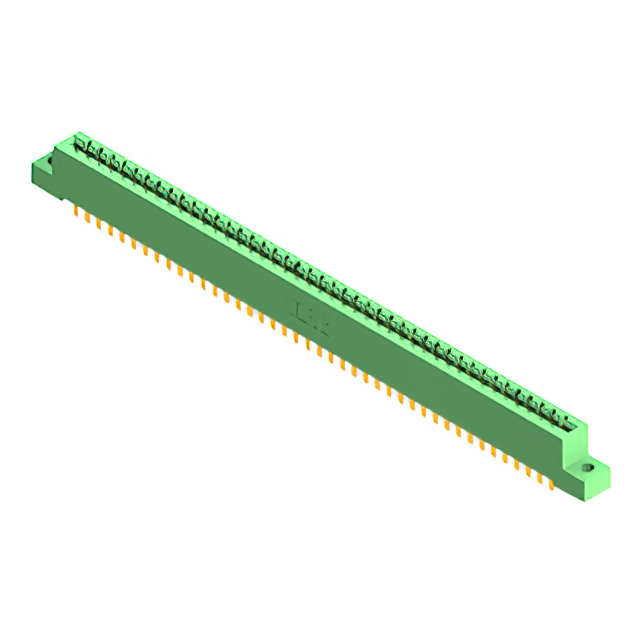

CONN EDGE DUAL FMALE 84POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-084-500-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 84 |
| Number of Positions/Bay/Row [custom] | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
337-084 Series
...
| Part | Gender | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination Rows | Number of Positions/Bay/Row [custom] | Color | Number of Rows | Contact Finish | Number of Positions | Mounting Type | Pitch [x] | Pitch [x] | Contact Type | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Through Hole | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |
EDAC Inc. | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Through Hole | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |
EDAC Inc. | Female | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | M3 Threaded Insert Top Mount Opening | Card Extender | ||
EDAC Inc. | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Through Hole | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | ||||
EDAC Inc. | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Through Hole | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Female | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Through Hole | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Through Hole Right Angle | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |
EDAC Inc. | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Through Hole Right Angle | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
EDAC Inc. | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Through Hole | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | M3 Threaded Insert Top Mount Opening | |||
EDAC Inc. | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Dual | 2 | 42 | Green | 2 | Gold | 84 | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Cantilever | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 26.33 | |
Description
General part information
337-084 Series
84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
