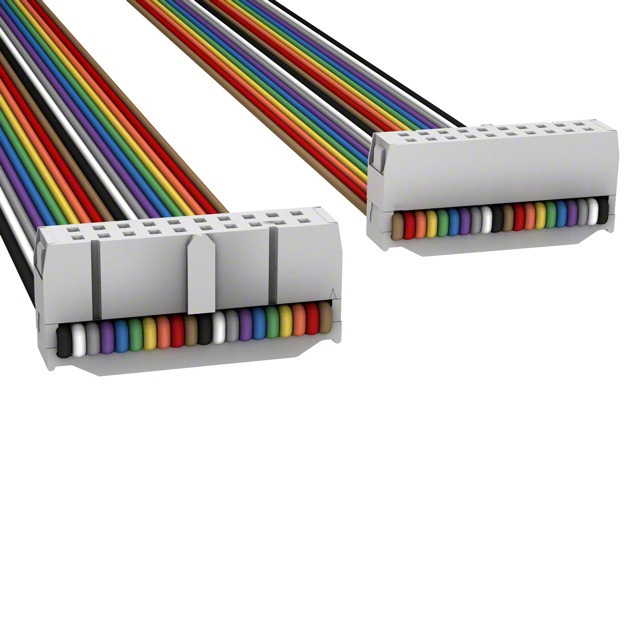

H3DDH-2036M

Active

Assmann WSW Components

IDC CBL- HHKR20H/AE20M/HHKR20H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL- HHKR20H/AE20M/HHKR20H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDH-2036M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Rows	Connector Type	Shielding	Pitch - Connector	Pitch - Connector	Number of Positions	Features	Pitch - Cable	Pitch - Cable	Contact Finish	Cable Termination	Color	Length	Length	Length
Assmann WSW Components H3DDH-2036G	15 µin	0.38 µm	3 ft	914.4 mm	2	Socket to Socket	Unshielded	0.1 in	2.54 mm	20	Polarizing Key Strain Relief	0.05 "	1.27 mm	Gold	IDC
Assmann WSW Components H3DDH-2018G	15 µin	0.38 µm	1.5 ft	457.2 mm	2	Socket to Socket	Unshielded	0.1 in	2.54 mm	20	Polarizing Key Strain Relief	0.05 "	1.27 mm	Gold	IDC
Assmann WSW Components H3DDH-2036M	15 µin	0.38 µm	3 ft	914.4 mm	2	Socket to Socket	Unshielded	0.1 in	2.54 mm	20	Polarizing Key Strain Relief	0.05 "	1.27 mm	Gold	IDC	Multiple Ribbon
Assmann WSW Components H3DDH-2006M	15 µin	0.38 µm			2	Socket to Socket	Unshielded	0.1 in	2.54 mm	20	Polarizing Key Strain Relief	0.05 "	1.27 mm	Gold	IDC	Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
