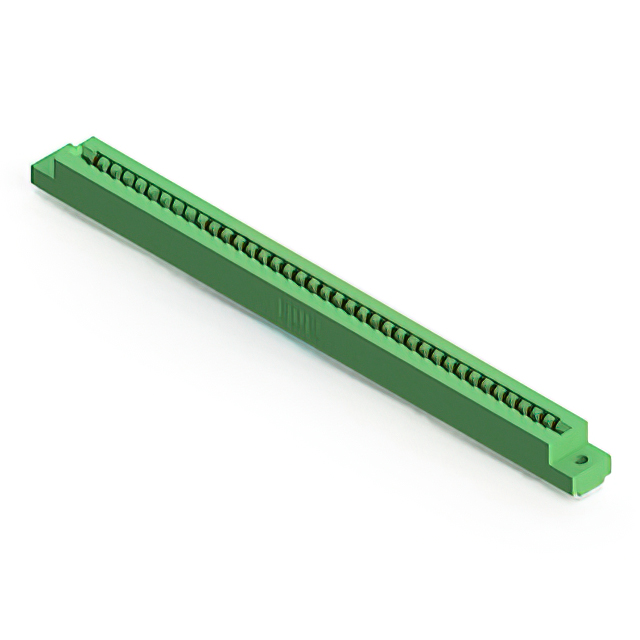

807-076-520-202
ActiveEDAC Inc.
807 HIGH TEMP' SERIES (.156" (3.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-076-520-202
ActiveEDAC Inc.
807 HIGH TEMP' SERIES (.156" (3.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-076-520-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
807-076 Series
| Part | Pitch [x] | Pitch [x] | Color | Termination Rows | Read Out | Material - Insulation | Contact Type | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Contact Finish | Mounting Type | Card Type | Number of Positions | Gender | Features | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Termination | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Dual | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Tin | Board Edge Straddle Mount | Non Specified - Dual Edge | 76 | Female | Card Extender | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | 2 | Solder | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Dual | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Tin | Board Edge Straddle Mount | Non Specified - Dual Edge | 76 | Female | Card Extender | Side Mount Opening Unthreaded | 125 °C | -40 °C | 2 | Solder | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Dual | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Tin | Through Hole | Non Specified - Dual Edge | 76 | Female | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 2 | Solder | 3.96 mm | 0.156 in | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Dual | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Through Hole | Non Specified - Dual Edge | 76 | Female | Side Mount Opening Unthreaded | 125 °C | -40 °C | 2 | Solder | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Dual | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Through Hole | Non Specified - Dual Edge | 76 | Female | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | 2 | Solder | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Dual | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Tin | Through Hole | Non Specified - Dual Edge | 76 | Female | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 2 | Solder Eyelet(s) | 3.25 mm | 0.128 " | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Single | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Tin | Through Hole Right Angle | Non Specified - Dual Edge | 76 | Female | Side Mount Opening Unthreaded | 125 °C | -40 °C | 2 | Solder | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Dual | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Through Hole | Non Specified - Dual Edge | 76 | Female | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 2 | Solder | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Dual | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Tin | Board Edge Straddle Mount | Non Specified - Dual Edge | 76 | Female | Card Extender | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 2 | Solder | 3.25 mm | 0.128 " | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Green | 2 | Single | Diallyl Phthalate (DAP) | Semi Bellows | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Through Hole Right Angle | Non Specified - Dual Edge | 76 | Female | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | 2 | Solder | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 109.86 | |
Description
General part information
807-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
