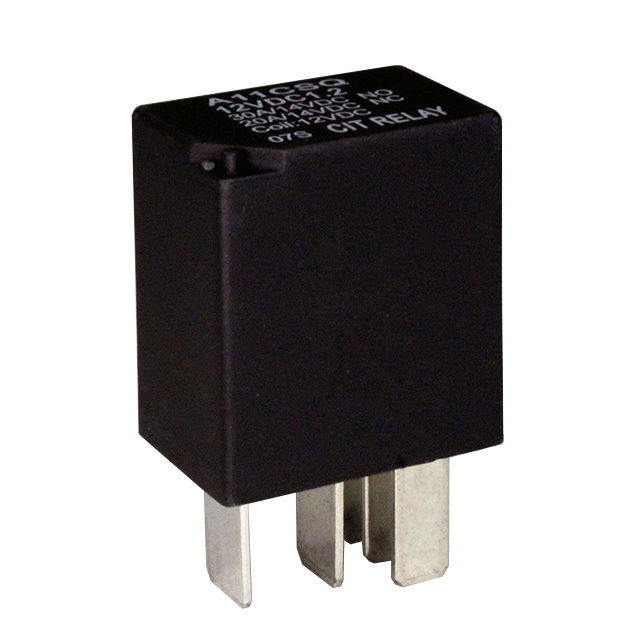

A11CSQ12VDC1.2
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
A11CSQ12VDC1.2
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A11CSQ12VDC1.2 |
|---|---|
| Coil Current | 100 mA |
| Coil Power | 1.2 W |
| Coil Resistance | 120 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Features | Sealed - Fully |
| Mounting Type | Socketable |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 7 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.40 | |
| 10 | $ 2.25 | |||
| 25 | $ 2.00 | |||
| 50 | $ 1.90 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.40 | |||
| 5000 | $ 1.35 | |||
Description
General part information
A11CSQ Series
RELAY AUTOMOTIVE SPDT 30A 12V
