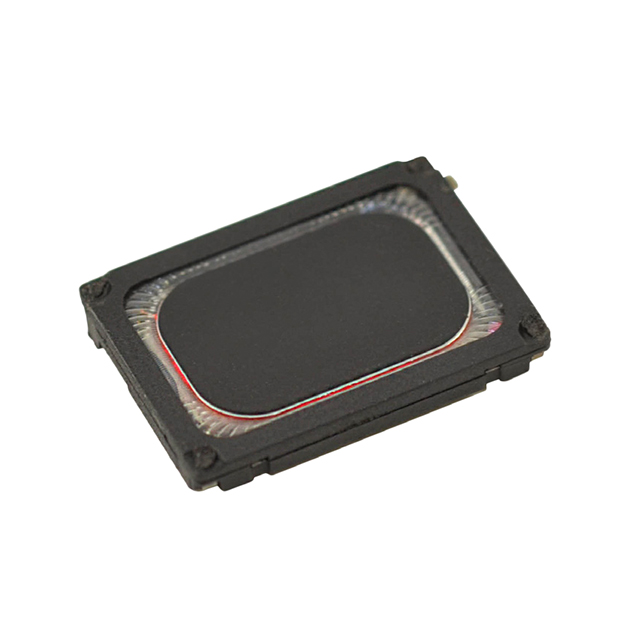

CMS-18138A-SP

Active

CUI Devices

SPEAKER 8OHM 800MW TOP PORT 92DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 800MW TOP PORT 92DB

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-18138A-SP

Efficiency - dBA	92 dBA
Efficiency - Testing	800mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	400 Hz
Frequency Range [Max]	10 kHz
Frequency Range [Min]	300 Hz
Height - Seated (Max) [Max] [z]	2.5 mm
Height - Seated (Max) [Max] [z]	0.098 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	1 W
Power - Rated	0.8 W
Shape	Rectangular
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Technology	Magnetic
Termination	Spring Type
Type	Low Profile

Part	Impedance	Efficiency - Testing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power - Max [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency - Self Resonant	Material - Magnet	Port Location	Efficiency - dBA	Efficiency - Type	Termination	Technology	Type	Power - Rated	Shape	Frequency Range [Min]	Frequency Range [Max]	Material - Cone
CUI Devices CMS-18138A-SP	8 Ohms	800mW/100mm	2.5 mm	0.098 in	1 W	13 mm	0.512 in	18 mm	0.709 in	400 Hz	Nd-Fe-B	Top	92 dBA	Sound Pressure Level (SPL)	Spring Type	Magnetic	Low Profile	0.8 W	Rectangular	300 Hz	10 kHz	Polyester Polyethylene Terephthalate (PET)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Low Profile Speaker 800 mW 300 Hz ~ 10 kHz Top Rectangular
