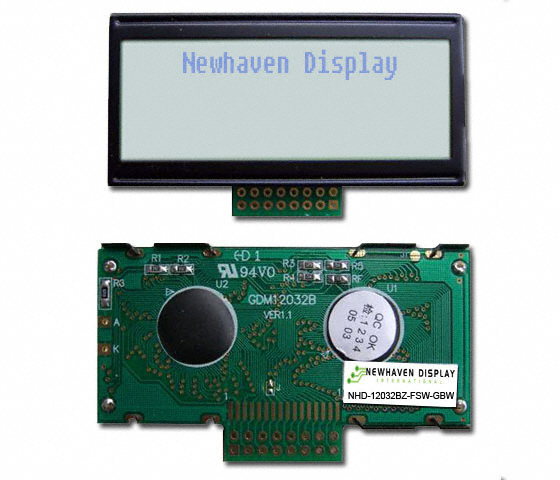

NHD-12032BZ-FSW-GBW
ObsoleteNewhaven Display Intl
LCD MOD GRAPH 120X32 WHT TRANSFL
Deep-Dive with AI
Search across all available documentation for this part.
NHD-12032BZ-FSW-GBW
ObsoleteNewhaven Display Intl
LCD MOD GRAPH 120X32 WHT TRANSFL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-12032BZ-FSW-GBW |
|---|---|
| Backlight | LED - White |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.47 mm |
| Dot Pitch [y] | 0.65 mm |
| Dot Pixels [x] | 120 |
| Dot Pixels [y] | 32 |
| Dot Size [x] | 0.42 mm |
| Dot Size [y] | 0.6 mm |
| Interface | Parallel, 8-Bit |
| Viewing Area [x] | 62 mm |
| Viewing Area [y] | 22.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-12032 Series
Graphic LCD Display Module Transflective STN - Super-Twisted Nematic Parallel, 8-Bit 120 x 32
Documents
Technical documentation and resources
