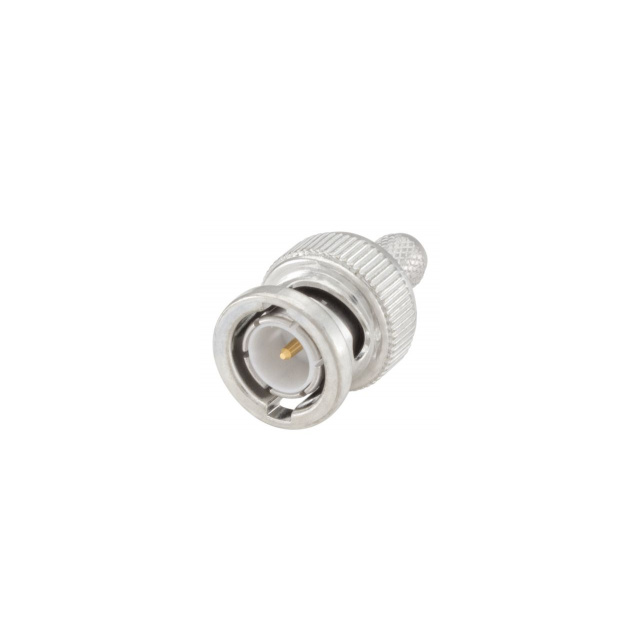

71S102-1T6N5

Active

Rosenberger

BNC 75 OHM STRAIGHT PLUG

Search across all available documentation for this part.

Active

Rosenberger

BNC 75 OHM STRAIGHT PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	71S102-1T6N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	400 V

Part	Mounting Type	Fastening Type	Body Finish	Impedance	Dielectric Material	Shield Termination	Mating Cycles	Frequency - Max [Max]	Center Contact Plating	Number of Ports	Contact Termination	Center Contact Material	Connector Type	Body Material	Voltage Rating	Housing Color	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Cable Group
Rosenberger 71S102-1T6N5	Free Hanging (In-Line)	Bayonet Lock	White Bronze	75 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	500	4 GHz	Gold	1	Crimp	Brass	Male Pin Plug	Brass	400 V	Silver	BNC	-65 ░C	165 °C
Rosenberger 71S102-110N5	Free Hanging (In-Line)	Bayonet Lock	White Bronze	75 Ohms		Crimp	500	4 GHz	Gold	1	Crimp	Brass	Male Pin Plug	Brass	400 V	Silver	BNC	-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule 1 Insulator	62B RG-62A
Rosenberger 71S102-1V6N5	Free Hanging (In-Line)	Bayonet Lock	White Bronze	75 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	500	4 GHz	Gold	1	Crimp	Brass	Male Pin Plug	Brass	400 V	Silver	BNC	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
