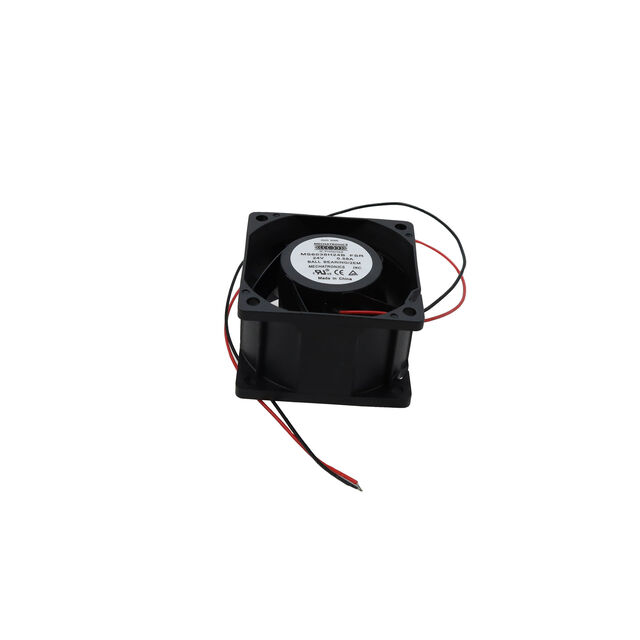

MS6038H24B-FSR-2EM

Active

Mechatronics Bearing Group

FAN AXIAL 60X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs

MS6038H24B-FSR-2EM

Active

Mechatronics Bearing Group

FAN AXIAL 60X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS6038H24B-FSR-2EM

Air Flow	1.62 mł/min
Air Flow	58 CFM
Bearing Type	Ball
Current Rating (Amps)	580 mA
Fan Type	Tubeaxial
Features	Auto Restart
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59 dB(A)
RPM	11000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	1.6 in H2O
Static Pressure	398.6 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.231 lb
Weight	104.78 g
Width [y]	38 mm

MS6038 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Material - Frame	Ingress Protection	Bearing Type	Static Pressure	Static Pressure	Width [y]	RPM	Features	Current Rating (Amps)	Voltage - Rated	Weight	Weight	Termination	Noise	Material - Blade	Fan Type	Air Flow	Air Flow	Voltage - Rated [custom]
Mechatronics Bearing Group MS6038H24B1+6-FSR-2EM	60 mm	60 mm	Plastic	IP68 - Dust Tight Waterproof	Ball	1.6 in H2O	398.6 Pa	38 mm	11000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	580 mA	24 VDC	0.231 lb	104.78 g	4 Wire Leads	59 dB(A)	Plastic	Tubeaxial	1.62 mł/min	58 CFM
Mechatronics Bearing Group MS6038H24B-FSR-2EM	60 mm	60 mm	Plastic	IP68 - Dust Tight Waterproof	Ball	1.6 in H2O	398.6 Pa	38 mm	11000 RPM	Auto Restart	580 mA	24 VDC	0.231 lb	104.78 g	2 Wire Leads	59 dB(A)	Plastic	Tubeaxial	1.62 mł/min	58 CFM
Mechatronics Bearing Group MS6038M48B1+6-FSR-2EM	60 mm	60 mm	Plastic	IP68 - Dust Tight Waterproof	Ball	0.81 in H2O	201.8 Pa	38 mm	8000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	140 mA		0.231 lb	104.78 g	4 Wire Leads	54 dB	Plastic	Tubeaxial	1.23 m³/min	44 CFM	48 VDC
Mechatronics Bearing Group MS6038M12B-FSR-2EM	60 mm	60 mm	Plastic	IP68 - Dust Tight Waterproof	Ball	0.81 in H2O	201.8 Pa	38 mm	8000 RPM	Auto Restart	580 mA	12 VDC	0.231 lb	104.78 g	2 Wire Leads	54 dB	Plastic	Tubeaxial	1.23 m³/min	44 CFM
Mechatronics Bearing Group MS6038H48B1+6-FSR	60 mm	60 mm	Plastic		Ball	1.6 in H2O	398.6 Pa	38 mm	11000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	0.29 A		0.231 lb	104.78 g	4 Wire Leads	59 dB(A)	Plastic	Tubeaxial	1.62 mł/min	58 CFM	48 VDC
Mechatronics Bearing Group MS6038H24B1+6-FSR	60 mm	60 mm	Plastic		Ball	1.6 in H2O	398.6 Pa	38 mm	11000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	580 mA	24 VDC	0.231 lb	104.78 g	4 Wire Leads	59 dB(A)	Plastic	Tubeaxial	1.62 mł/min	58 CFM
Mechatronics Bearing Group MS6038H48B-FSR-2EM	60 mm	60 mm	Plastic	IP68 - Dust Tight Waterproof	Ball	1.6 in H2O	398.6 Pa	38 mm	11000 RPM	Auto Restart	0.29 A		0.231 lb	104.78 g	2 Wire Leads	59 dB(A)	Plastic	Tubeaxial	1.62 mł/min	58 CFM	48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.49
		10	$ 19.62
		25	$ 18.88
		50	$ 17.64
		100	$ 16.27
		250	$ 16.02
		500	$ 15.90

Description

General part information

MS6038 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 58.0 CFM (1.62m³/min) 2 Wire Leads
