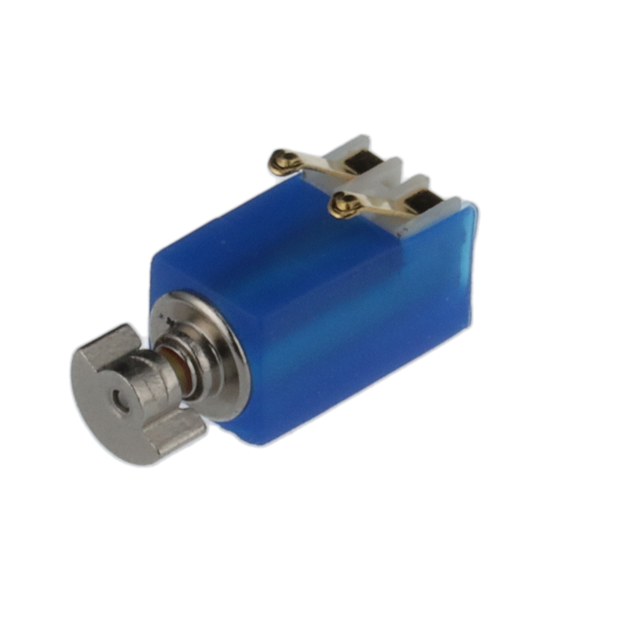

VZ4TH5B0191760L
ActiveVybronics Inc
VIBRATION ERM MOTOR 14K RPM 0.8G
Deep-Dive with AI
Search across all available documentation for this part.
VZ4TH5B0191760L
ActiveVybronics Inc
VIBRATION ERM MOTOR 14K RPM 0.8G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VZ4TH5B0191760L |
|---|---|
| Function | ERM, Vibration |
| Length - Shaft and Bearing [x] | 3 mm |
| Length - Shaft and Bearing [x] | 0.118 in |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| RPM | 14000 RPM |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 0.173 " |
| Size / Dimension [y] | 4.4 mm |
| Termination Style | Pressure Contact |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.38 | |
| 5 | $ 2.26 | |||
| 10 | $ 2.19 | |||
| 25 | $ 2.13 | |||
| 50 | $ 1.94 | |||
| 100 | $ 1.75 | |||
| 250 | $ 1.69 | |||
| 500 | $ 1.67 | |||
| 1000 | $ 1.57 | |||
Description
General part information
Z4TH5B0191760 Series
DC Motor Vibration, ERM 14000 RPM 3VDC
Documents
Technical documentation and resources
