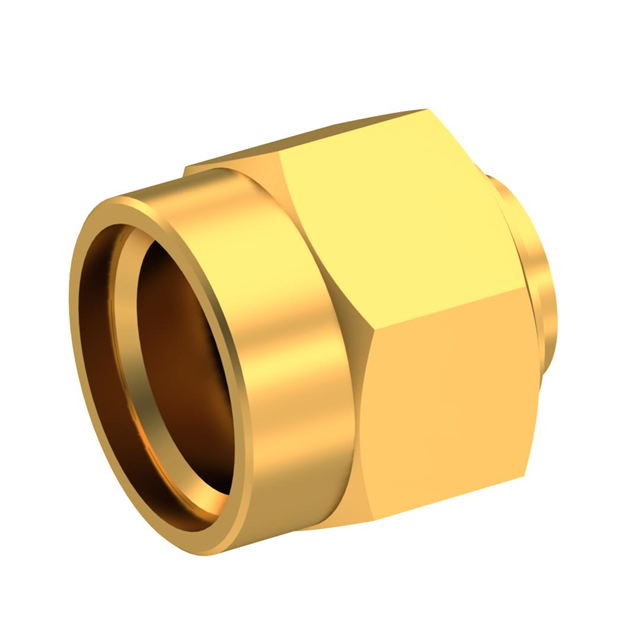

9301-1063-009

Active

Radiall USA, Inc.

SMA M STR NA SD .141

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA M STR NA SD .141

Technical Specifications

Parameters and characteristics for this part

Specification	9301-1063-009

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Finish	Housing Color	Mounting Type	Connector Type	Mating Cycles	Body Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Connector Style	Center Contact Material	Number of Ports	Contact Termination	Frequency - Max [Max]	Shield Termination	Dielectric Material	Impedance
Radiall USA, Inc. 9301-1063-009	Gold	Gold	Free Hanging (In-Line)	Male Pin Plug	500	Stainless Steel	500 V	-65 ░C	105 ░C	Gold	SMA	Brass	1	Solder	18 GHz	Solder	Polytetrafluoroethylene (PTFE)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
