SIL09E223J

Active

TE Connectivity Passive Product

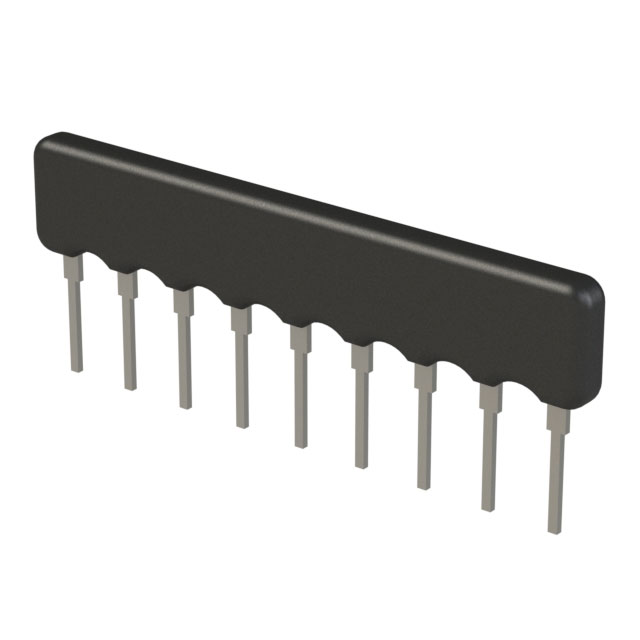

RES ARRAY 8 RES 22K OHM 9SIP

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES ARRAY 8 RES 22K OHM 9SIP

Technical Specifications

Parameters and characteristics for this part

Part	Resistance (Ohms)	Circuit Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Number of Resistors	Power Per Element	Package / Case	Number of Pins	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Resistance (Ohms)
TE Connectivity Passive Product SIL09E223J	22k	Bussed	2.5 mm	22.86 mm	0.098 in	22.86 mm	200 ppm/°C	-55 °C	125 °C	8	200 mW	9-SIP	9	Through Hole	5.08 mm	0.2 "	5 %
TE Connectivity Passive Product SIL09E472J	4.7k	Bussed	2.5 mm	22.86 mm	0.098 in	22.86 mm	200 ppm/°C	-55 °C	125 °C	8	200 mW	9-SIP	9	Through Hole	5.08 mm	0.2 "	5 %
TE Connectivity Passive Product SIL09E102J		Bussed	2.5 mm	22.86 mm	0.098 in	22.86 mm	200 ppm/°C	-55 °C	125 °C	8	200 mW	9-SIP	9	Through Hole	5.08 mm	0.2 "	5 %	1 kOhms
TE Connectivity Passive Product SIL09E104J		Bussed	2.5 mm	22.86 mm	0.098 in	22.86 mm	200 ppm/°C	-55 °C	125 °C	8	200 mW	9-SIP	9	Through Hole	5.08 mm	0.2 "	5 %	100 kOhms
TE Connectivity Passive Product SIL09E822J		Bussed	2.5 mm	22.86 mm	0.098 in	22.86 mm	200 ppm/°C	-55 °C	125 °C	8	200 mW	9-SIP	9	Through Hole	5.08 mm	0.2 "	5 %	8.2 kOhms
TE Connectivity Passive Product SIL09E122J		Bussed	2.5 mm	22.86 mm	0.098 in	22.86 mm	200 ppm/°C	-55 °C	125 °C	8	200 mW	9-SIP	9	Through Hole	5.08 mm	0.2 "	5 %	1.2 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22k Ohm ±5% 200mW Power Per Element Bussed 8 Resistor Network/Array ±200ppm/°C 9-SIP
