RL73X1HR10FTD

Active

TE Connectivity Passive Product

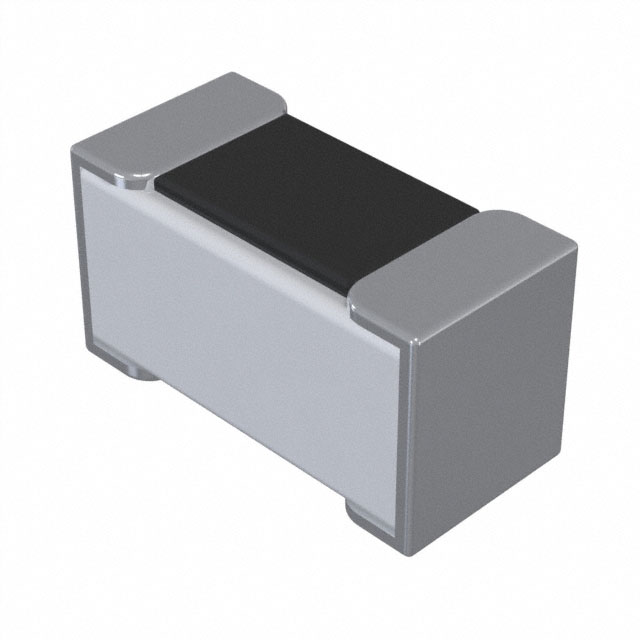

RES 0.1 OHM 1% 1/20W 0201

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 0.1 OHM 1% 1/20W 0201

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Resistance	Package / Case	Package / Case	Power (Watts)	Power (Watts)	Features	Composition	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Supplier Device Package	Number of Terminations
TE Connectivity Passive Product RL73X1HR10FTD	155 °C	-55 °C	1 %	0.1 Ohms	0603 Metric	0201	0.05 W	50 mW	Current Sense	Thick Film	0.011 in	0.29 mm	0.023 "	0.58 mm	0.28 mm	0.011 "	1000 ppm/°C	0201	2
TE Connectivity Passive Product RL73X1HR12FTDF	155 °C	-55 °C	1 %	0.12 Ohms	0603 Metric	0201	0.05 W	50 mW	Current Sense	Thick Film	0.011 in	0.29 mm	0.023 "	0.58 mm	0.28 mm	0.011 "	1000 ppm/°C	0201	2
TE Connectivity Passive Product RL73X1HR11FTDF	155 °C	-55 °C	1 %	110 mOhms	0603 Metric	0201	0.05 W	50 mW	Current Sense	Thick Film	0.011 in	0.29 mm	0.023 "	0.58 mm	0.28 mm	0.011 "	1000 ppm/°C	0201	2
TE Connectivity Passive Product RL73X1HR13FTD	155 °C	-55 °C	1 %	0.13 Ohms	0603 Metric	0201	0.05 W	50 mW	Current Sense	Thick Film	0.011 in	0.29 mm	0.023 "	0.58 mm	0.28 mm	0.011 "	1000 ppm/°C	0201	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.07

General part information

100 mOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Current Sense Thick Film
