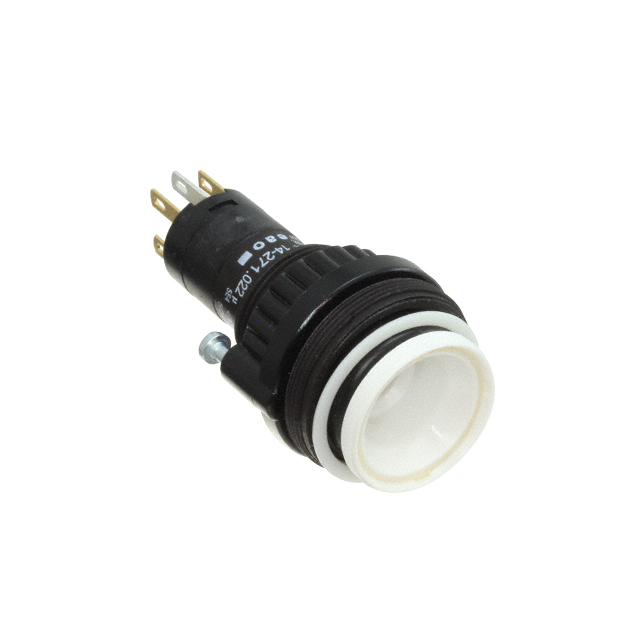

14-131.022

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	14-131.022

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom, On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	250 V

Part	Circuit	Actuator Marking	Mounting Type	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Ingress Protection
EAO 14-131.022	DPST-NO/NC	No Marking	Panel Mount Front	250 V	Off-Mom On-Mom	5 A	0.11 in	Quick Connect Solder	2.8 mm	55 °C	-25 °C	Round Button (Not Included)	Standard	22.3 mm	2000000 Cycles	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
