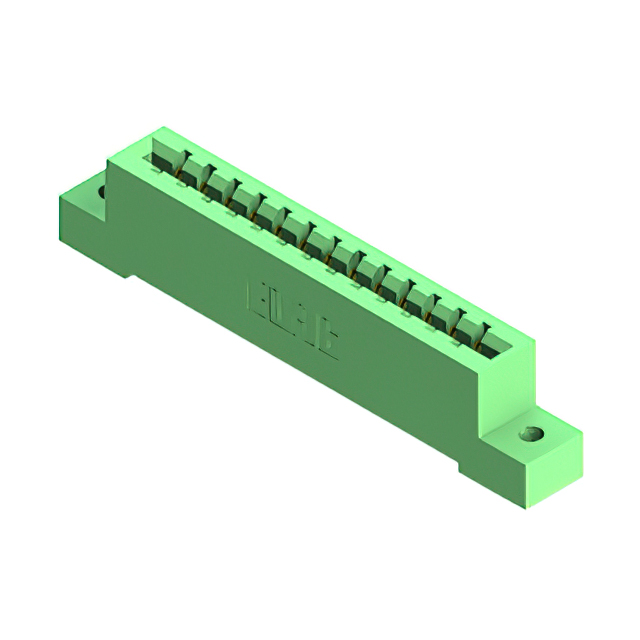

837-013-520-102
ActiveEDAC Inc.
CONN EDGE SGL FMALE 13POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-013-520-102
ActiveEDAC Inc.
CONN EDGE SGL FMALE 13POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-013-520-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 13 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
837-013 Series
| Part | Gender | Number of Positions | Mounting Type | Flange Feature | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Finish | Number of Positions/Bay/Row [custom] | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Pitch [x] | Pitch [x] | Card Type | Number of Rows | Termination Rows | Material - Insulation | Color | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 13 | Through Hole Right Angle | 4-40 Threaded Insert Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Solder | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | ||||
EDAC Inc. | Female | 13 | Through Hole | Flush Mount Top Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Solder | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | 3.25 mm | 0.128 " | ||
EDAC Inc. | Female | 13 | Through Hole Right Angle | Top Mount Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Solder | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | ||
EDAC Inc. | Female | 13 | Through Hole Right Angle | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Solder | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | ||||
EDAC Inc. | Female | 13 | Through Hole | Flush Mount Top Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Solder | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | ||
EDAC Inc. | Female | 13 | Through Hole | M3 Threaded Insert Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Wire Wrap | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | ||||
EDAC Inc. | Female | 13 | Through Hole | Side Mount Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Solder | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | 3.25 mm | 0.128 in | ||
EDAC Inc. | Female | 13 | Through Hole Right Angle | Flush Mount Top Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Solder | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | ||
EDAC Inc. | Female | 13 | Through Hole | Flush Mount Top Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Wire Wrap | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | ||
EDAC Inc. | Female | 13 | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Wire Wrap | Gold | 13 | Copper Alloy | 125 °C | -40 °C | Single | 0.156 in | 3.96 mm | Non Specified - Single Edge | 1 | 1 | Diallyl Phthalate (DAP) | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 29.91 | |
Description
General part information
837-013 Series
13 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
