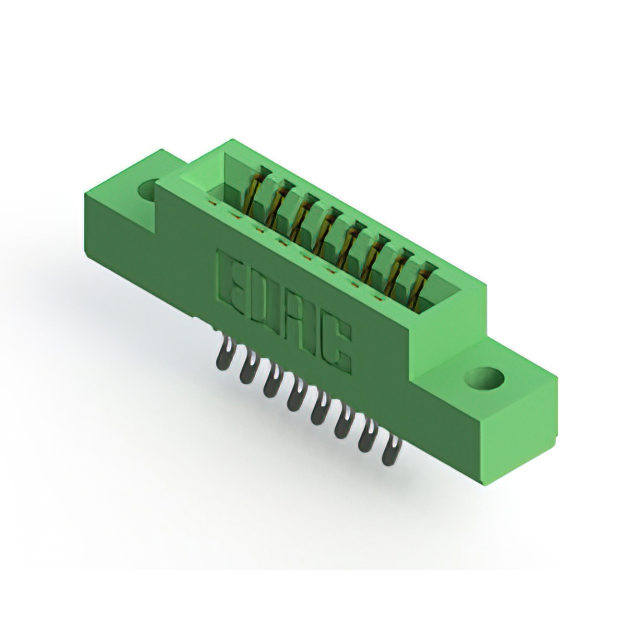

341-016-555-202
ActiveEDAC Inc.
STANDARD CARD EDGE CONNECTORS CARD EDGE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-016-555-202
ActiveEDAC Inc.
STANDARD CARD EDGE CONNECTORS CARD EDGE CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-016-555-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
341-016 Series
| Part | Gender | Contact Material | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Termination | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Mounting Type | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Contact Finish | Color | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Termination Rows | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | Semi Bellows | 8 | 8 | 8 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Dual Edge | Gold | Green | 2 | 10 Áin | 0.25 Ám | 16 | 2 | ||
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | Semi Bellows | 8 | 8 | 8 | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Dual Edge | Gold | Green | 2 | 10 Áin | 0.25 Ám | 16 | 2 | |||||
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder Eyelet(s) | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Diallyl Phthalate (DAP) | -40 °C | 105 ░C | Non Specified - Single Edge | Gold | Green | 1 | 10 Áin | 0.25 Ám | 16 | 1 | 16 | ||||||
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | Semi Bellows | 8 | 8 | 8 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Dual Edge | Gold | Green | 2 | 10 Áin | 0.25 Ám | 16 | 2 | ||
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder | Semi Bellows | 8 | 8 | 8 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Board Edge Straddle Mount | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Dual Edge | Gold | Green | 2 | 10 Áin | 0.25 Ám | 16 | 2 | Card Extender | |
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Solder Eyelet(s) | Semi Bellows | 8 | 8 | 8 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Board Edge Straddle Mount | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Dual Edge | Gold | Green | 2 | 10 Áin | 0.25 Ám | 16 | 2 | Card Extender | |
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | Semi Bellows | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Single Edge | Gold | Green | 1 | 10 Áin | 0.25 Ám | 16 | 1 | 16 | ||||
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Single Edge | Gold | Green | 1 | 10 Áin | 0.25 Ám | 16 | 1 | 16 | ||||||
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Single Edge | Gold | Green | 1 | 10 Áin | 0.25 Ám | 16 | 1 | 16 | ||||||
EDAC Inc. | Female | Copper Alloy | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Solder | Semi Bellows | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Non Specified - Single Edge | Gold | Green | 1 | 10 Áin | 0.25 Ám | 16 | 1 | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 11.20 | |
Description
General part information
341-016 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
