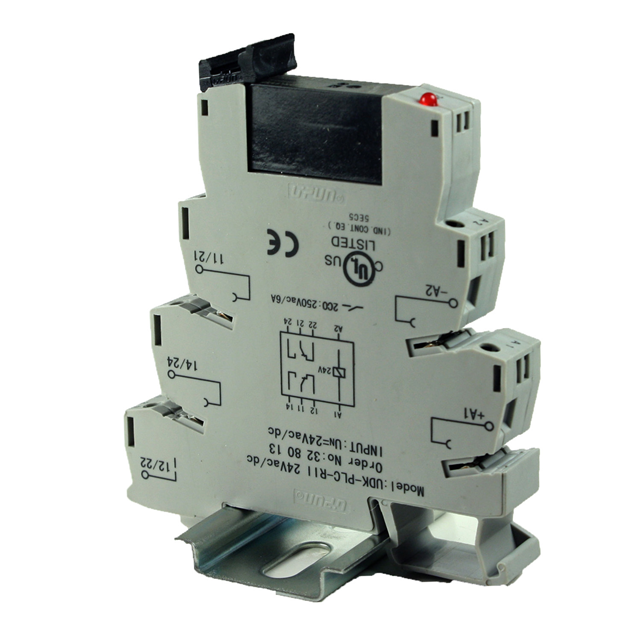

ASI328013

Active

ASI-Ez

RELAY DPDT 8A 24V

Search across all available documentation for this part.

Active

ASI-Ez

RELAY DPDT 8A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Coil Current	Coil Voltage	Contact Form	Release Time	Termination Style	Switching Voltage	Operate Time	Mounting Type
ASI-Ez ASI328001	6 A	14 mA	12 VDC	SPDT	4 ms	Screw Clamp	250 VAC	8 ms	DIN Rail
ASI-Ez ASI328013	8 A	18 mA	24 VAC	DPDT (2 Form C)	8 ms	Screw Terminal	250 VAC	15 ms	DIN Rail
ASI-Ez ASI328044	6 A		24 VAC	SPDT (1 Form C)	4 ms	Spring Terminal	250 VAC	8 ms	DIN Rail
ASI-Ez ASI328040	6 A	3.2 mA	120 VAC 120 VDC	SPDT (1 Form C)	4 ms	Screw Terminal	250 VAC	8 ms	DIN Rail
ASI-Ez ASI328003	6 A		24 VAC	SPDT (1 Form C)	4 ms	Screw Terminal	250 VAC	8 ms	DIN Rail
ASI-Ez ASI328011	8 A	35 mA	12 VDC	DPDT (2 Form C)	8 ms	Screw Terminal	250 VAC	15 ms	DIN Rail
ASI-Ez ASI328043	6 A		24 VDC	SPDT (1 Form C)	4 ms	Spring Terminal	250 VAC	8 ms	DIN Rail
ASI-Ez ASI328047	6 A	3.5 mA	120 VAC 120 VDC	SPDT (1 Form C)	4 ms	Spring Terminal	250 VAC	8 ms	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Relay DPDT (2 Form C) 24VAC/DC Coil DIN Rail
