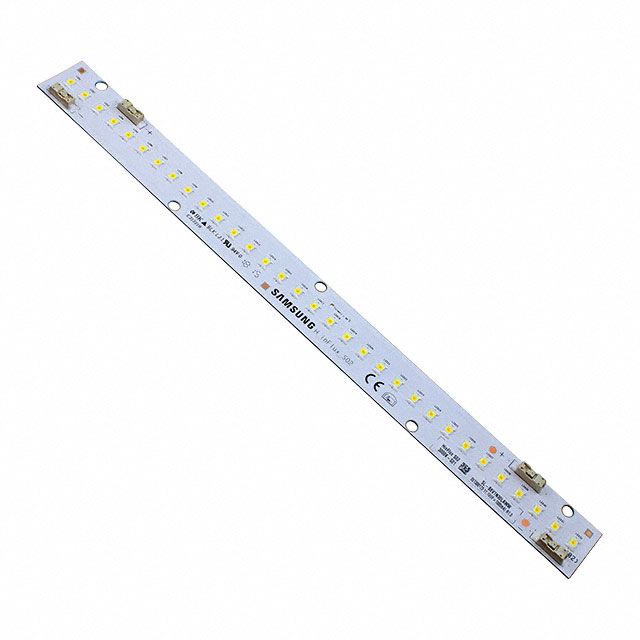

SL-B8V1N30LAWW

Active

Samsung Semiconductor, Inc.

LED MOD H INFLUX LNR STRP 3000K

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED MOD H INFLUX LNR STRP 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	SL-B8V1N30LAWW

Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	1.6 A
Current - Test	1 A
Height [z]	5.2 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	178 lm/W
Luminous Flux @ Current/Temperature	1980 lm
Size / Dimension [x]	280 mm
Size / Dimension [y]	24 mm
Temperature - Test	55 °C
Type	LED Module
Viewing Angle	118 °

Part	Color	Current - Max [Max]	Height [z]	Type	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Temperature - Test	Current - Test	Lens Type	Configuration	Viewing Angle	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Features
Samsung Semiconductor, Inc. SL-B8V1N30LAWW	Warm White	1.6 A	5.2 mm	LED Module	80	280 mm	24 mm	55 °C	1 A	Flat	Linear Light Strip	118 °	1980 lm	178 lm/W
Samsung Semiconductor, Inc. SL-B8V1N40L1WW	Warm White	1.38 A	5.9 mm	LED Module	80	279.6 mm	23.7 mm	65 °C	1.38 A	Flat	Linear Light Strip	115 °	2095 lm	125 lm/W	12.1 V	With Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module H inFlux White, Warm Linear Light Strip
