R316207000

Active

Radiall USA, Inc.

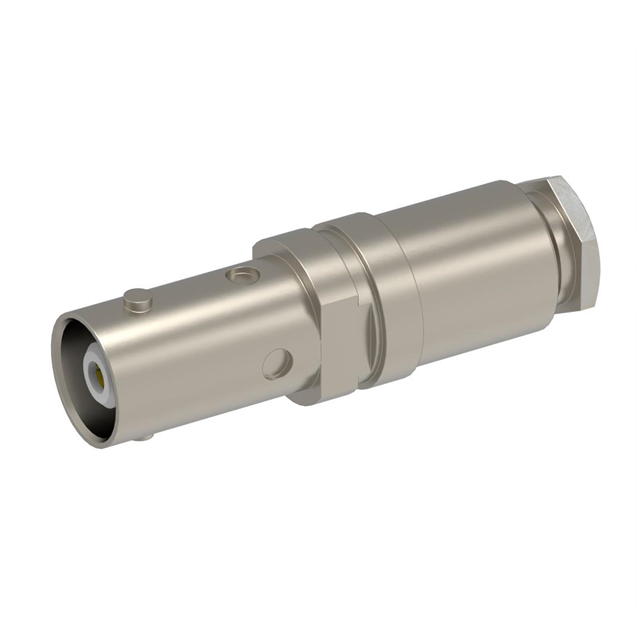

BNC HT-MHV / STRAIGHT JACK CLAMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC HT-MHV / STRAIGHT JACK CLAMP

Technical Specifications

Parameters and characteristics for this part

Specification	R316207000

Body Finish	Nickel
Body Material	Brass
Cable Group	400, 223, 141, RG-58, 142
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

Part	Connector Style	Mating Cycles	Cable Group	Body Material	Dielectric Material	Shield Termination	Number of Ports	Center Contact Plating	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Impedance	Center Contact Material	Mounting Type	Contact Termination	Body Finish	Connector Type	Frequency - Max [Max]
Radiall USA, Inc. R316207000	BNC	500	141 142 223 400 RG-58	Brass	Polytetrafluoroethylene (PTFE)	Clamp	1	Silver	Silver	155 °C	-55 °C	Bayonet Lock	50 Ohms	Beryllium Copper Brass	Free Hanging (In-Line)	Solder	Nickel	Female Socket Jack	2 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 33.73

General part information

BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
