VLAS080516C350RP
ActiveKyocera AVX
LOW CLAMP AUTOMOTIVE SERIES VAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLAS080516C350RP
ActiveKyocera AVX
LOW CLAMP AUTOMOTIVE SERIES VAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLAS080516C350RP |
|---|---|
| Capacitance @ Frequency | 900 pF |
| Current - Surge | 120 A |
| Energy | 0.3 J |
| Grade | Automotive |
| Maximum AC Volts [Max] | 11 V |
| Maximum DC Volts [Max] | 16 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Qualification | AEC-Q200 |
| Varistor Voltage (Max) [Max] | 21.84 V |
| Varistor Voltage (Min) [Min] | 17.16 V |
| Varistor Voltage (Typ) | 19.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.67 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.67 | ||
| 10 | $ 0.41 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 4000 | $ 0.15 | ||
Description
General part information
VLAS080516 Series

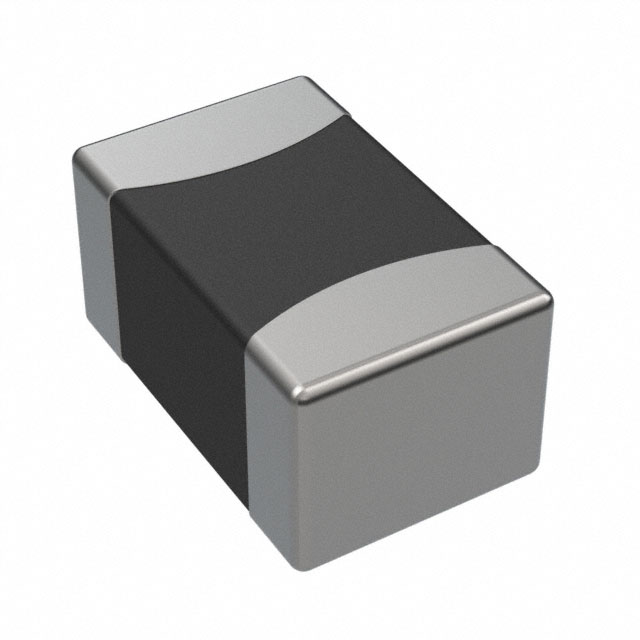

19.5 V 120 A Varistor 1 Circuit Surface Mount, MLCV 0805 (2012 Metric)
